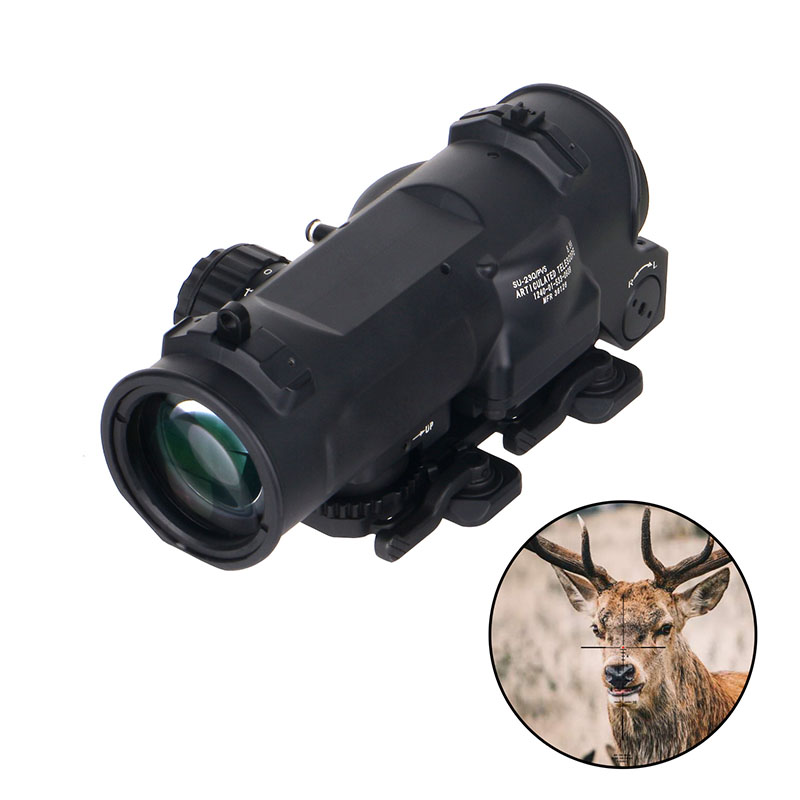

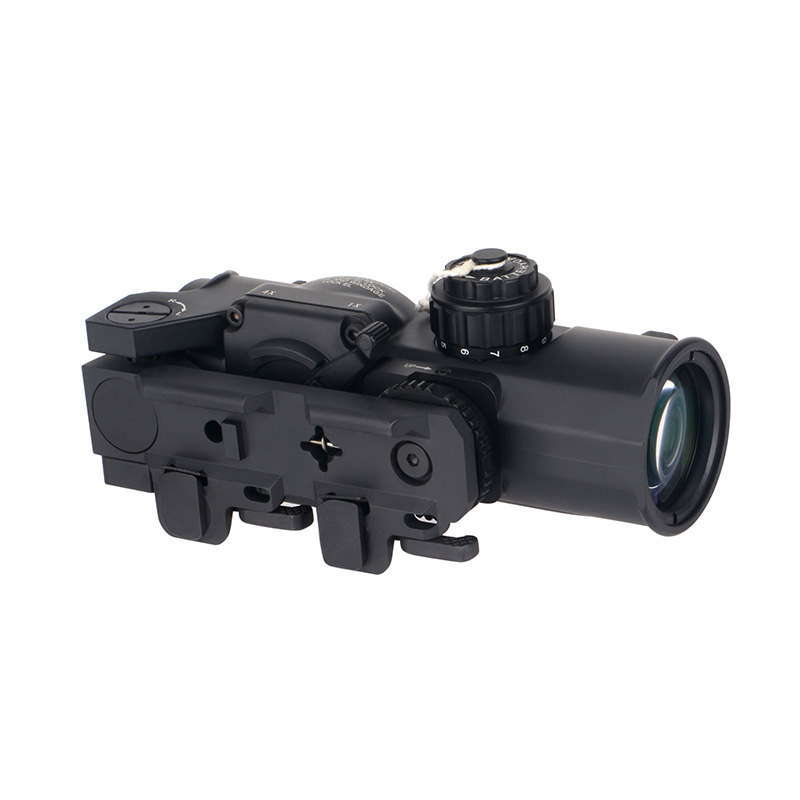

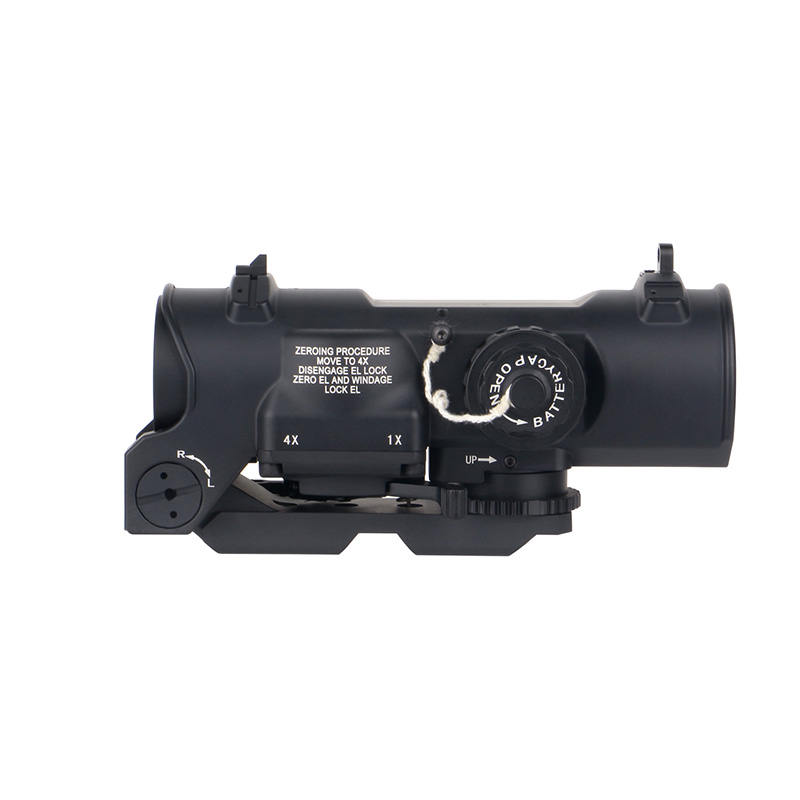

1-4x Optical Sight

Specifications

Item No.: MZJ-RSP-125

Color: Matte Black

Body Construction: Anodized Aluminum

Coating: Fully Multi-Coated

Magnification: 1- 4X adjustable

Objective: 32mm

Length: 153mm/6.02"

Width: 74mm/2.91"

Height: 78mm/3.07"

Eye Relief: 70mm

Exit Pupil: 8mm

Angle of view: 26 degrees at 1x, 6.5 degrees at 4x

Field of View at 4x: 11.4m at 100m (34.2ft at 100 yards)

Field of View at 1x: 48.8m at 100m (146.3ft at 100 yards)

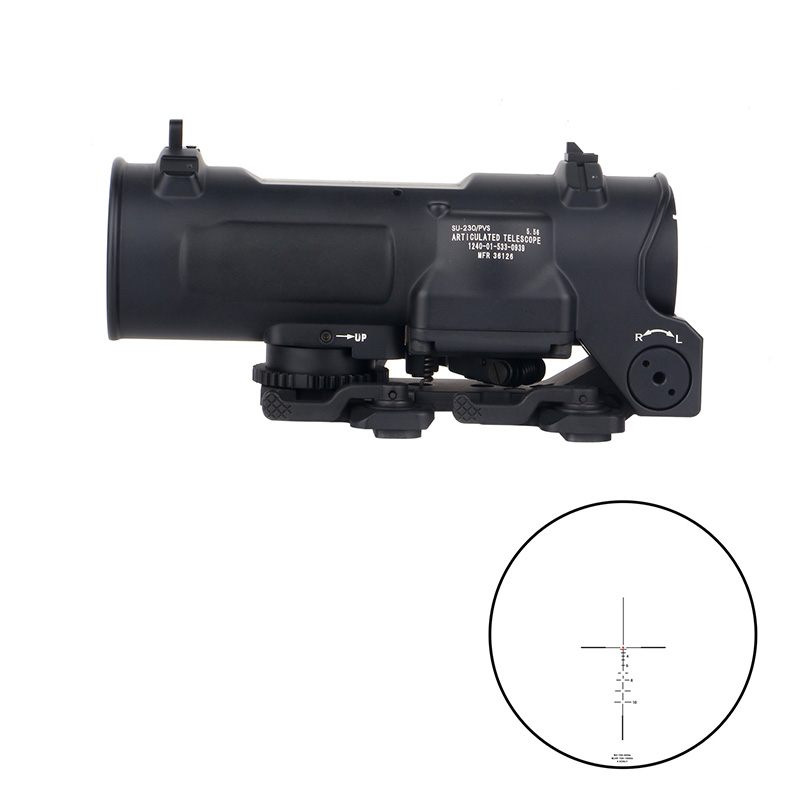

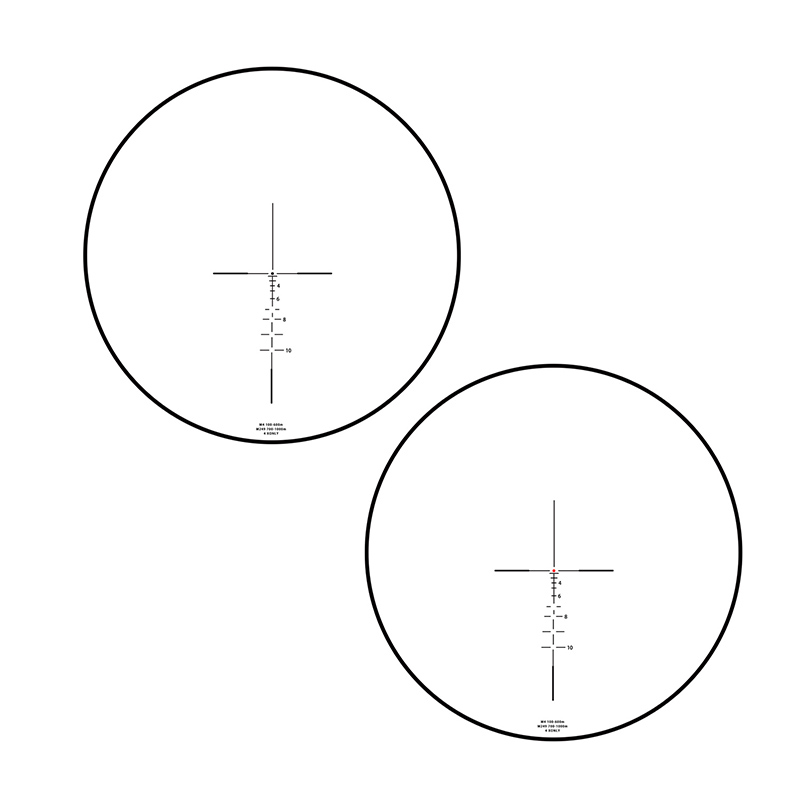

Reticle: dual-thickness ballistic crosshair with VSOR rangefinder, and user-selectable red dot

Brightness Control: 11 levels

Fixed Focus Range: 20m to infinity

Rail Type: 20mm weaver

Shockproof/Fogproof/Nitrogen Filled: Yes

Battery: 1x CR1620(Not Included)

Item Weight: 606g

Package Weight: 921g

Package Size: 21.5x11x9cm/8.46x4.33x3.54"

Key Features

1-4X adjustable magnification real steel grade rifle scope.

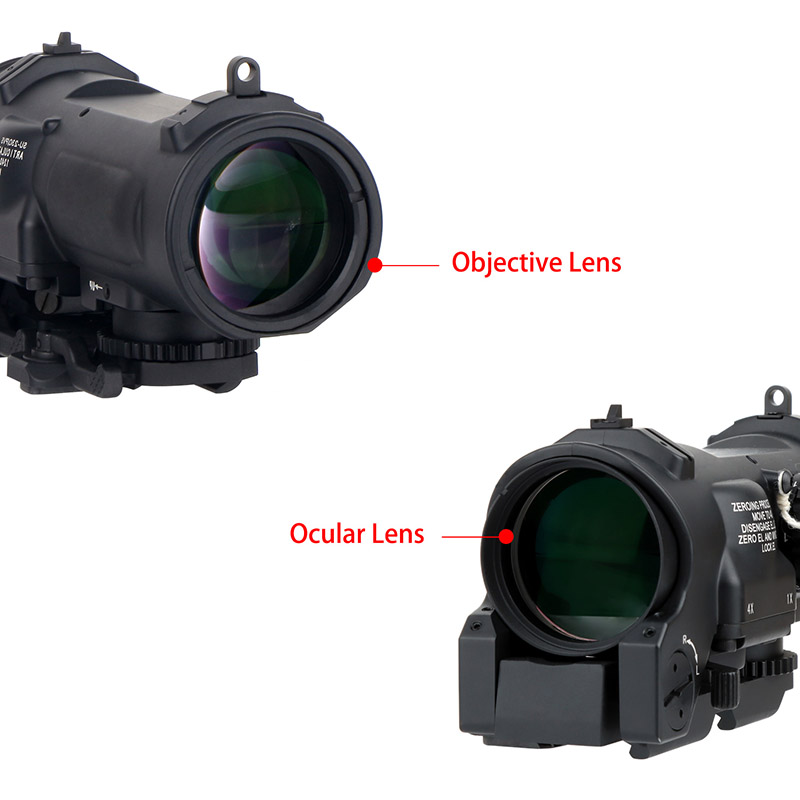

Best in class fully multi-coated lenses for best clarity.

Completely sealed and nitrogen filled, fogproof & splashproof.

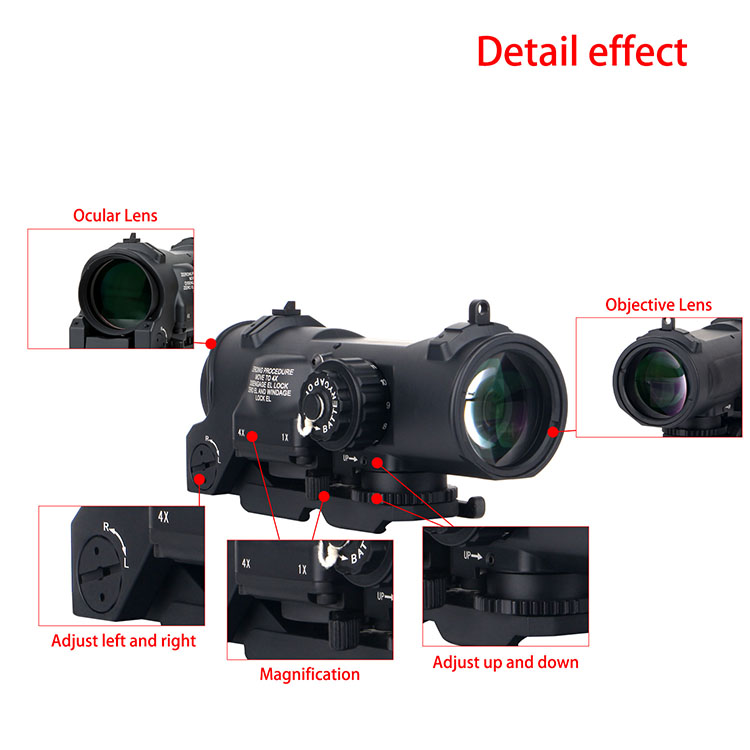

Premium precision windage and elevation adjustments.

Easy to use BDC and ranging system with user-selectable red dot.

Illuminated reticle with 11 levels of brightness for all environment shootings.

Reaches out to a target at 1000m(M4 100m-600m, M249 700-1000m 4X ONLY)

Dual field of view switches instantly from a 4x magnified sight to a 1x CQB sight.

Designed for high reticle visibility and target acquisition in the most extreme conditions.

Shockproof for airsoft application with no zero lock setting for high power caliber rifles.

Overview

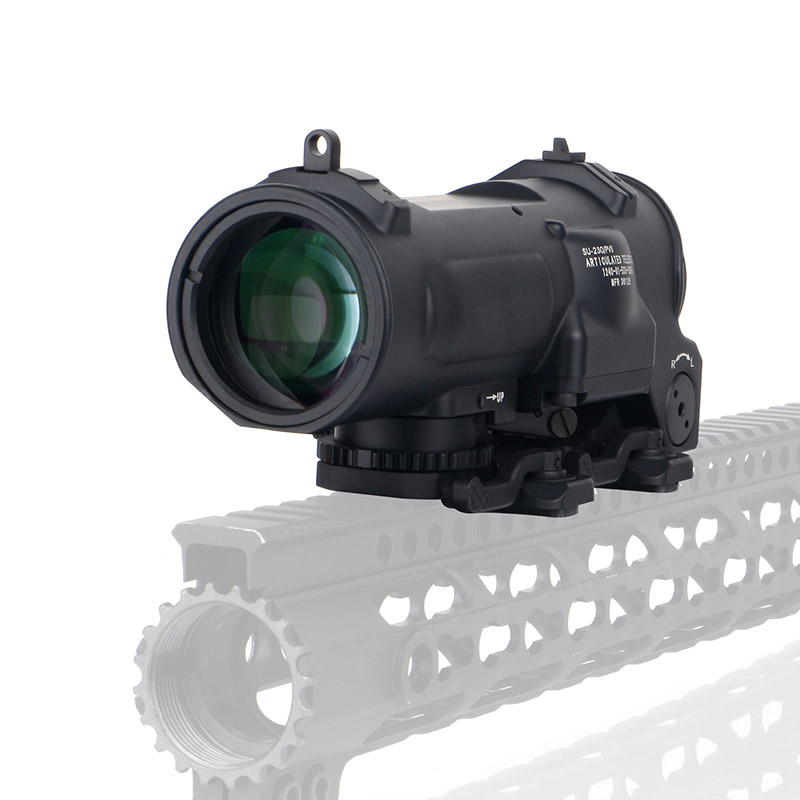

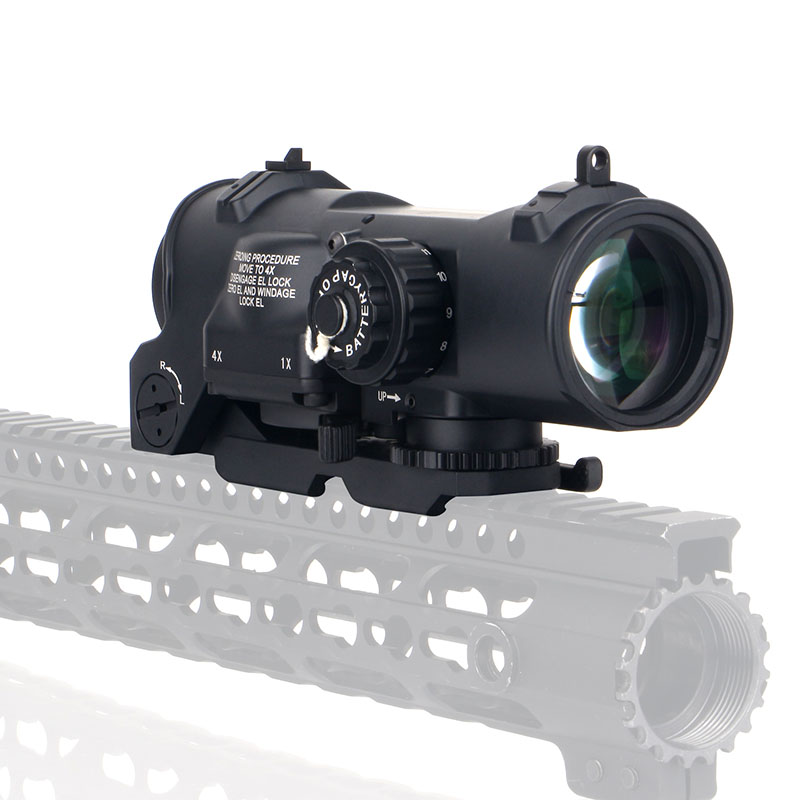

The 1-4x Optical Sight is a dual-threat optic that offers two different sights that allow you to navigate both CQB & mid-range situations with precision and speed. 1-4X adjustable magnification real steel grade rifle scope with an illuminated rangefinder reticle with 11 levels of brightness for all environment shootings. With the 1-4x Dual Role Optical Sight equipped, you can instantly switch from a 4x magnified sight to a 1x CQB sight with the simple throw of a lever. Both sights offer identical, optimal eye relief for comfort, and these units are shockproof to withstand the strong recoil from your firearm. Integrated iron sight completed with integrated quick-release A.R.M.S. Picatinny mount. Mount the 1-4x Optical Sight to your Picatinny rail to be prepared to take down targets at a variety of distances.

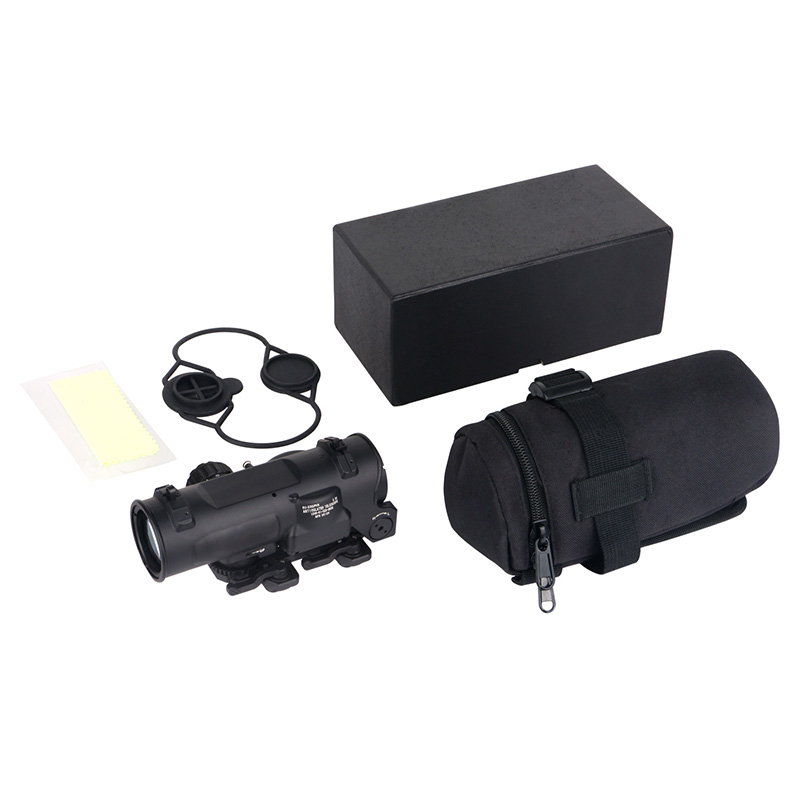

Package Contents

1x 1-4x Optical Sight with Integral ARMS Picatinny Mount

1x Padded Belt Pouch

1x Elastic Rubber Lens Cap

1X Lens Cloth
