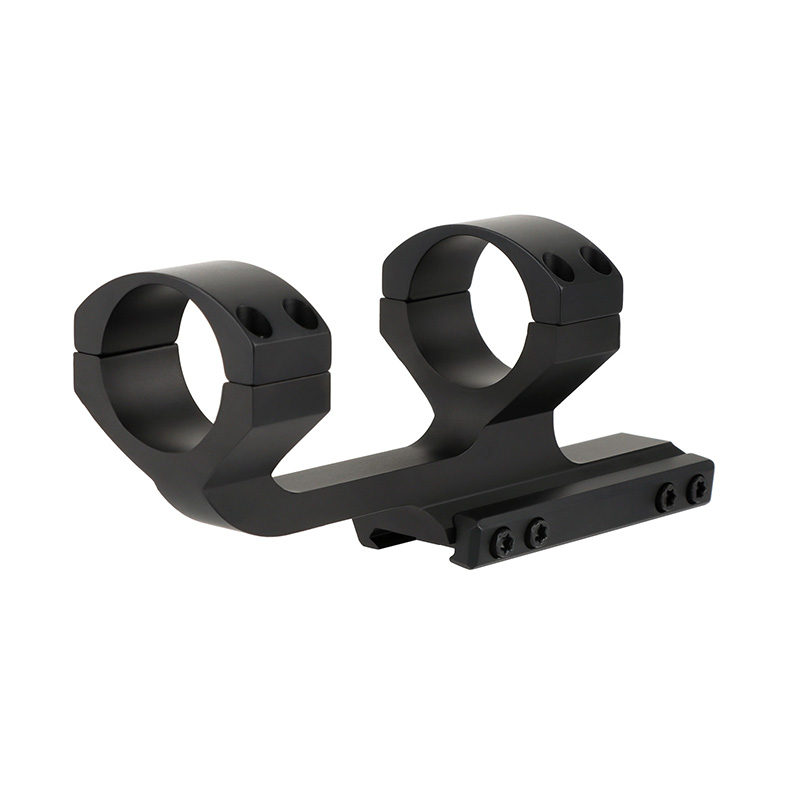

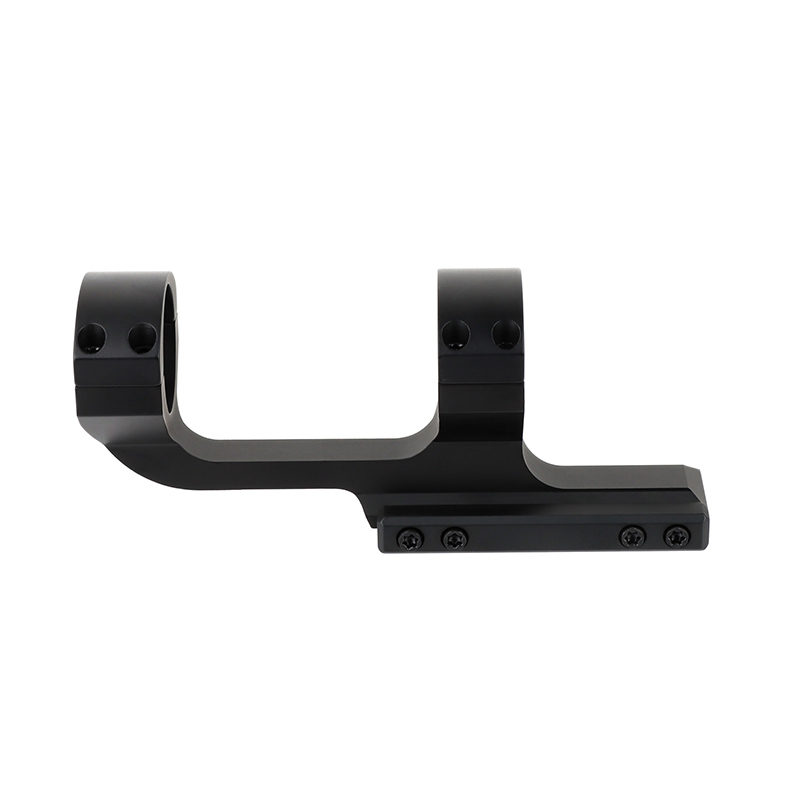

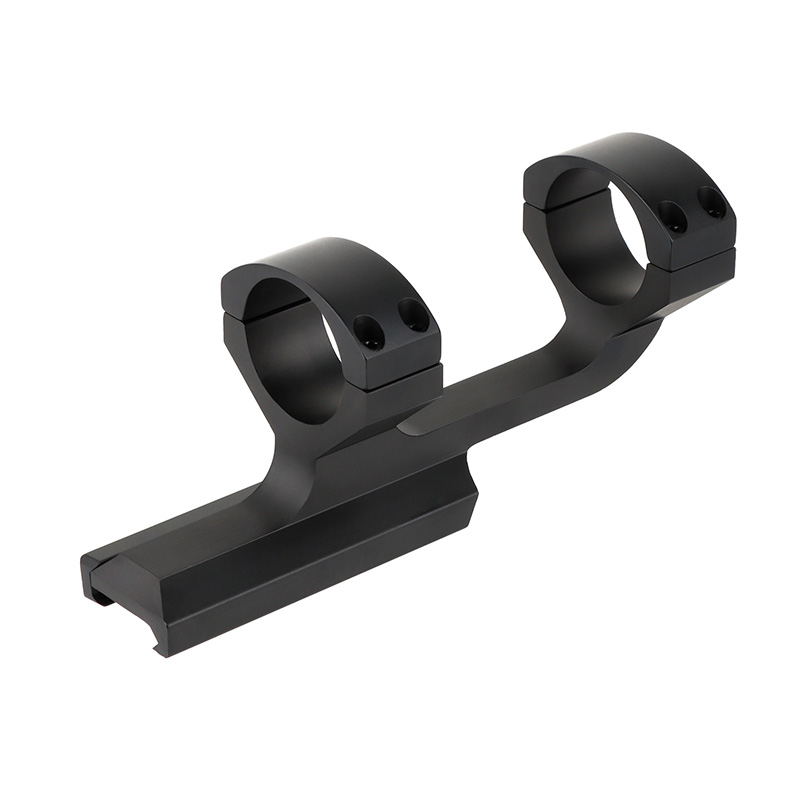

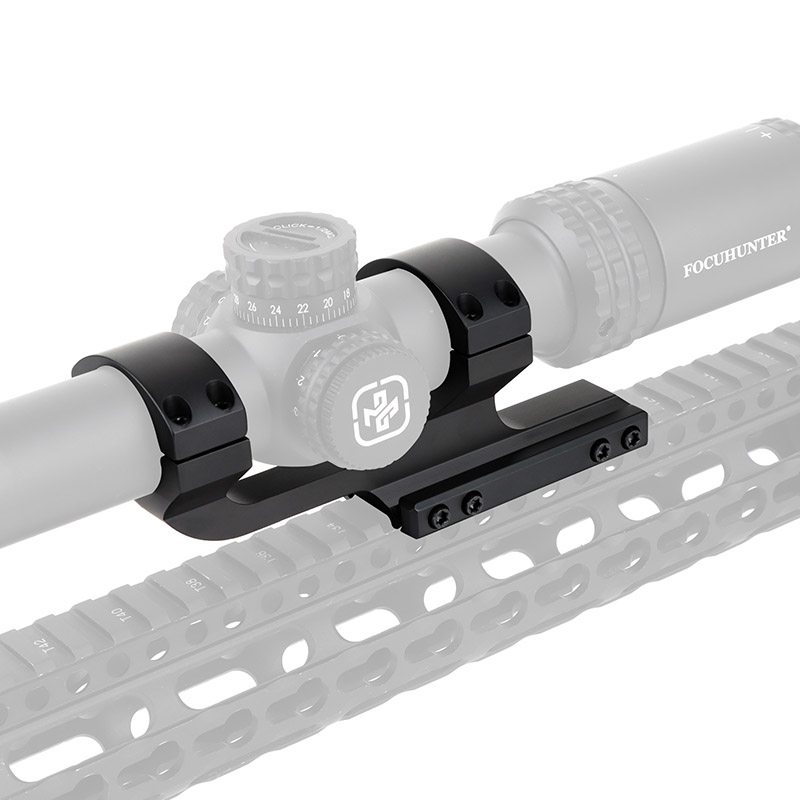

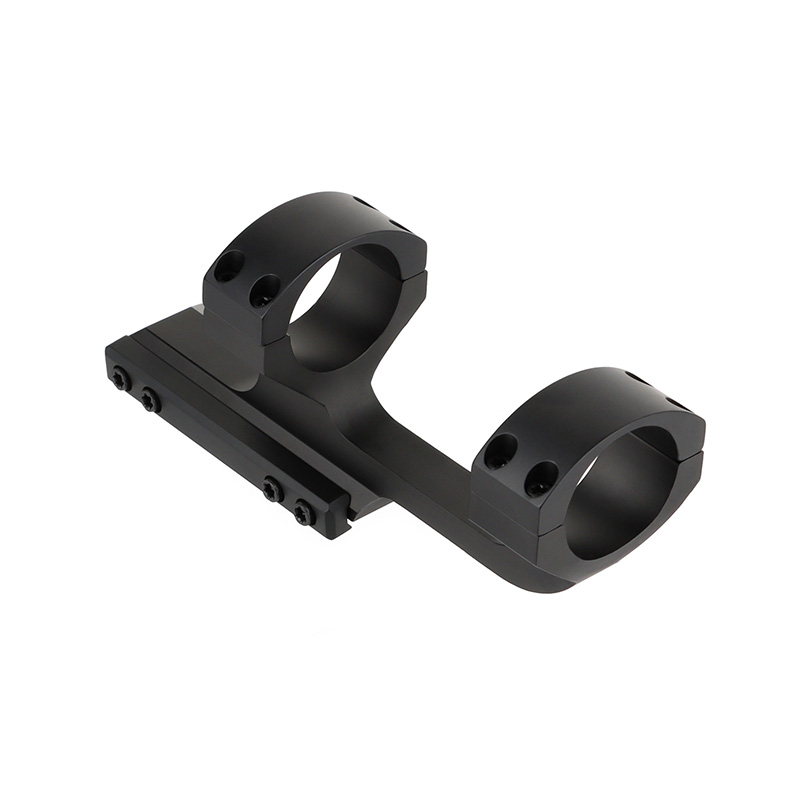

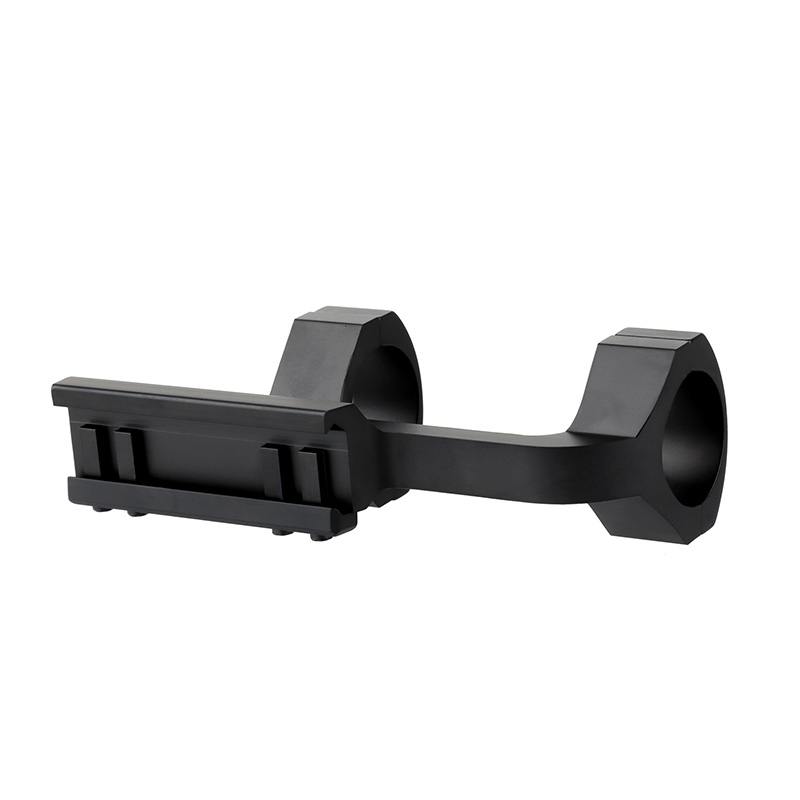

30mm Offset Scope Mount



Specifications

Item No: MZJ-MOT-0127

Color: Matte Black

Material: 6063 Aluminum

Treatment: Anodizing

Allen Wrench Material: Heavty-duty Iron

Base/Mount Type: Picatinny

Tube Diameter: 30mm

Dimensions: 14x4.4x6cm/5.5x1.73x2.36"

Total Length: 14cm/5.5"

Base Length: 7.6cm/3"

Center Height: 4.15cm/1.63"

Ring Space: 6cm/2.36"

Forward Extension: 2"

Item Weight: 144g/5 oz

Package Weight: 175g/6.17 oz

Package Size:14.5x5x8cm/5.70x1.96x3.14"



Features

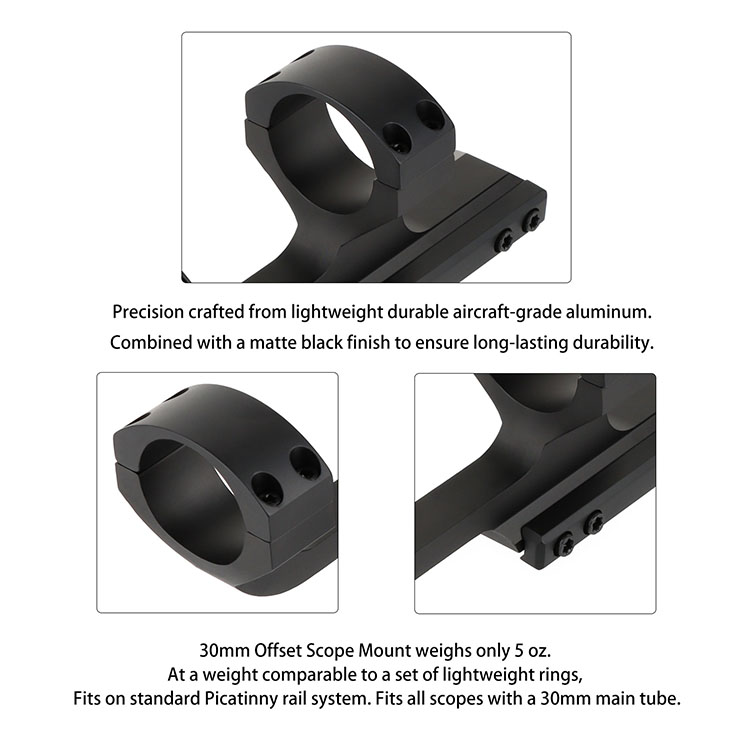

Precision crafted from lightweight durable aircraft-grade aluminum.

Combined with a matte black finish to ensure long-lasting durability.

One-piece body design for strength and better alignment of scope.

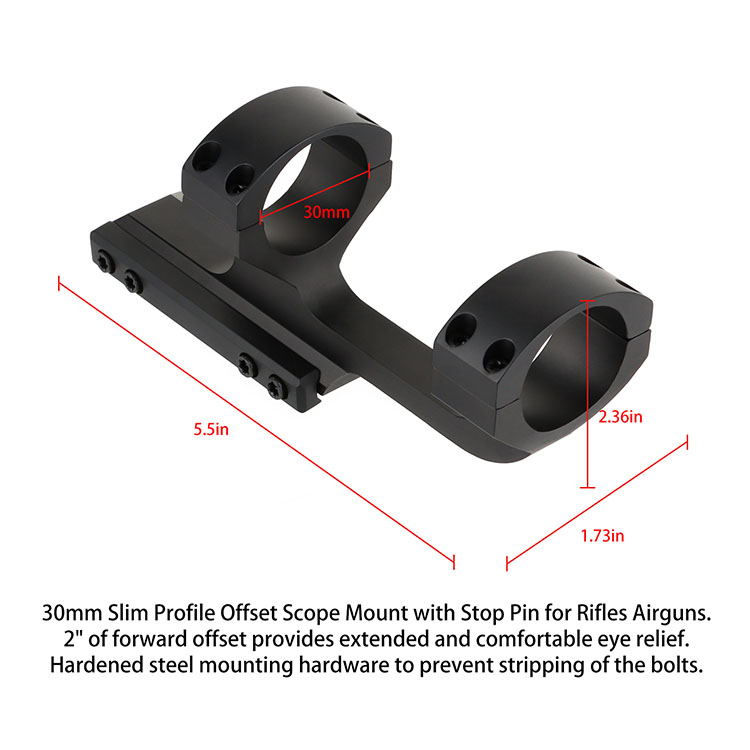

30mm Slim Profile Offset Scope Mount with Stop Pin for Rifles Airguns.

2" of forward offset provides extended and comfortable eye relief.

Hardened steel mounting hardware to prevent stripping of the bolts.

Complete with stop-pin for rock-solid application and reduced recoil.

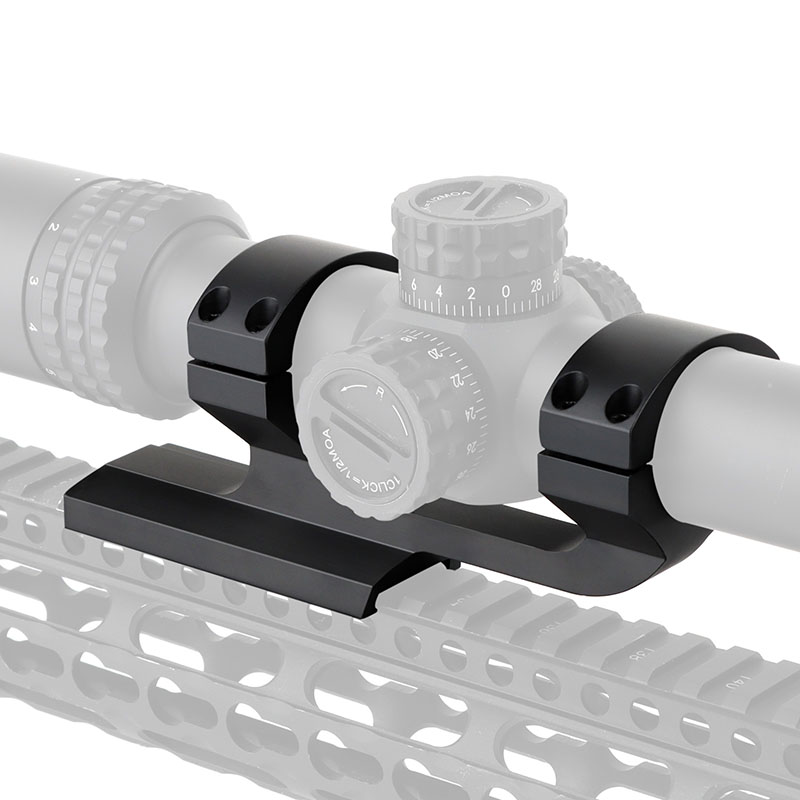

Fits on standard Picatinny rail system. Fits all scopes with a 30mm main tube.



Overview

30mm Offset Scope Mount weighs only 5 oz. At a weight comparable to a set of lightweight rings, it provides the added rigidity & convenience of a one-piece mount. Features 4 square-integral recoil stops, which allows us to reduce weight while increasing strength. 30mm Slim Profile Offset Scope Mount is built for fits all scopes with 30mm main tube. One-piece body design for strength and better alignment of scope. The mount is 5.5" in total length, the base is 3" in total length. There is 2.36" of spacing between rings. Offset design provides an additional 2" of forward extension, allowing extra flexibility for optimum eye-relief & shooting position. The height between the bottom of the base to the center of the scope rings is 1.63", providing 1.63" of vertical clearance.



Package Contents

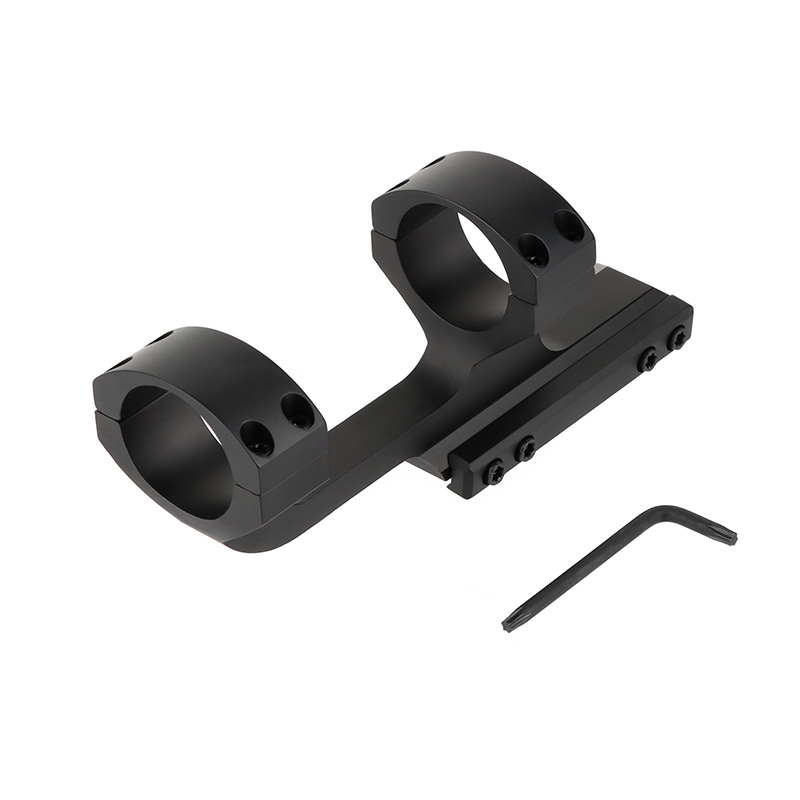

1x 30mm Offset Scope Mount

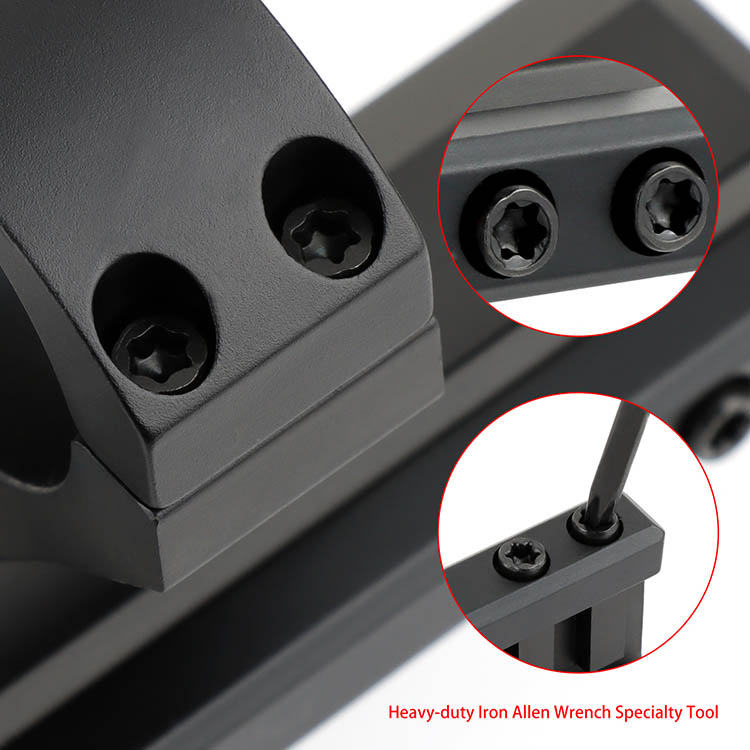

1x Heavy-duty Iron Allen Wrench Specialty Tool
