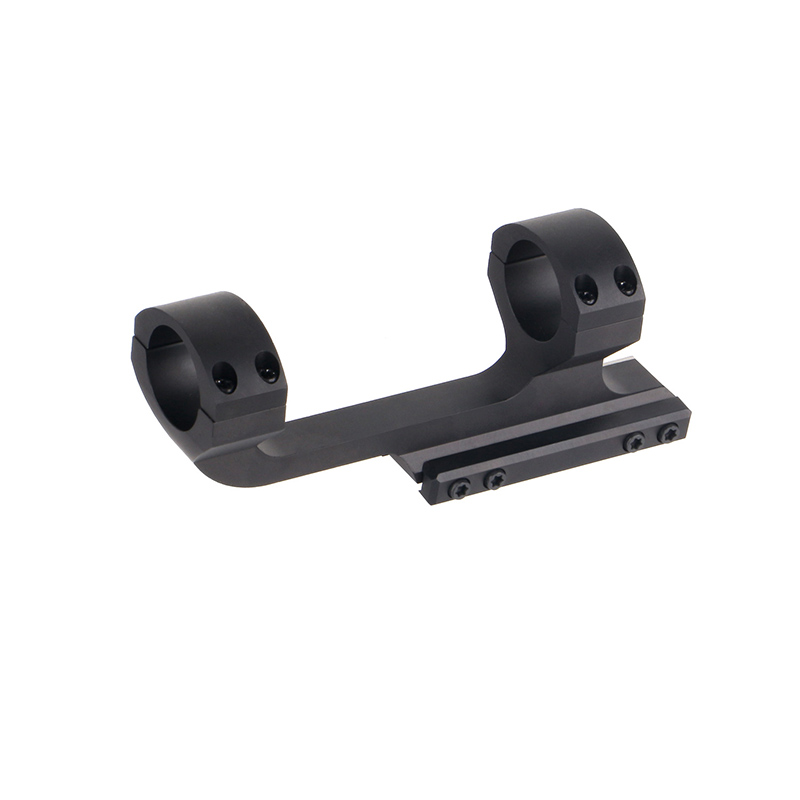

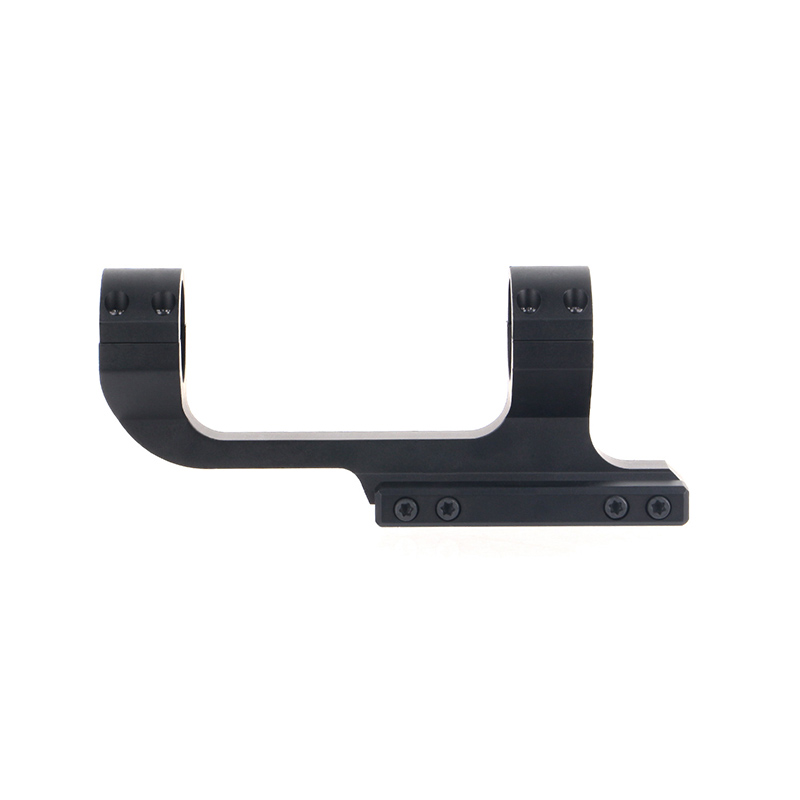

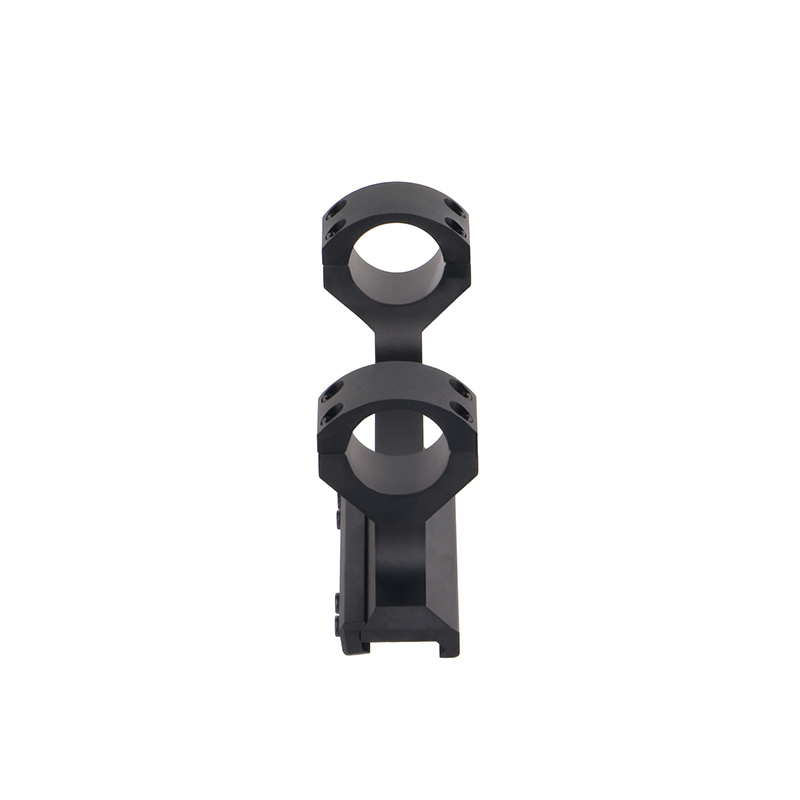

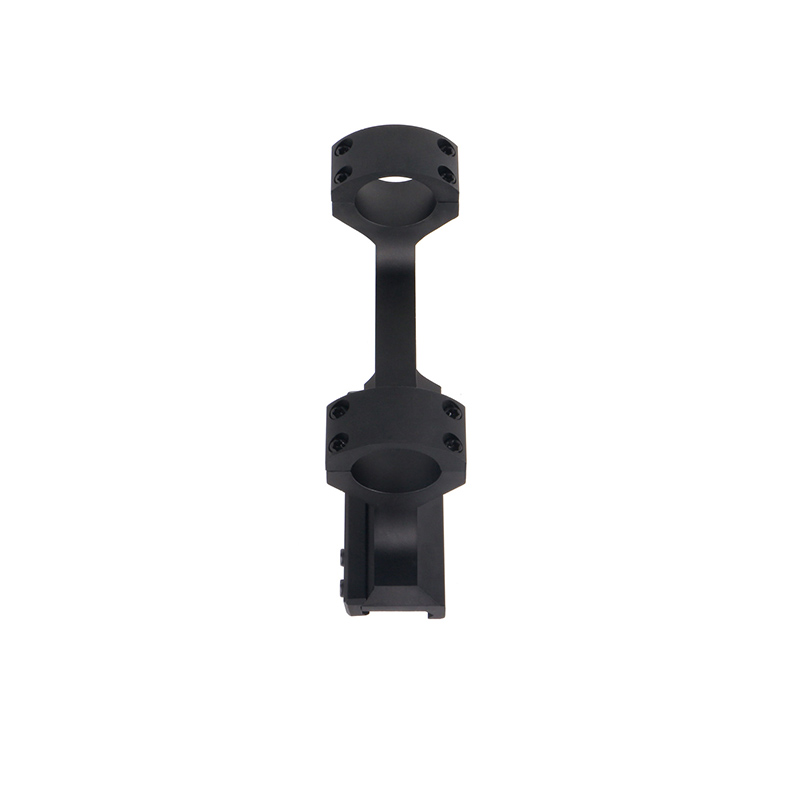

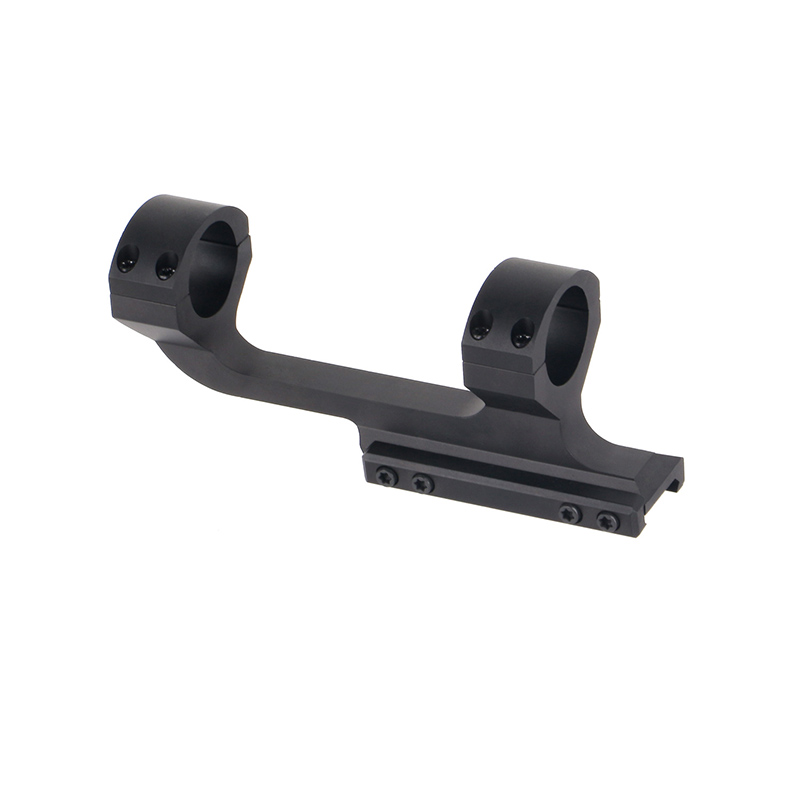

One-Piece 1" Cantilever Scope Mount



Item No: MZJ-MOT-0118

Color: Matte Black

Material: 6061 Aircraft-grade Aluminum

Treatment: Type III (hard) Anodizing

Base/Mount Type: Picatinny

Tube Diameter: 25.4mm/1"

Compatibility: AR-15, Rifles with Picatinny rails

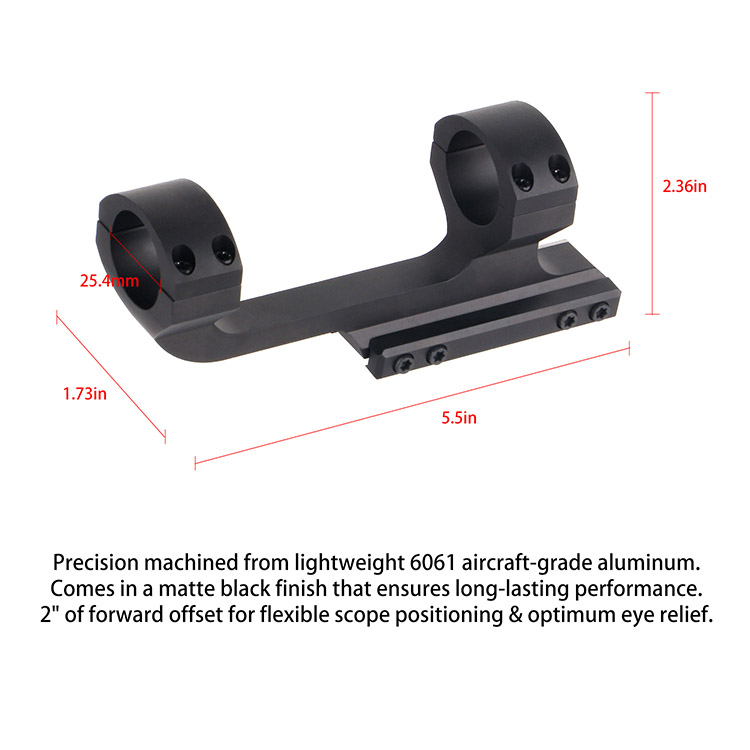

Dimensions: 14x4.4x6cm/5.5x1.73x2.36"

Total Length: 14cm/5.5"

Base Length: 7.6cm/3"

Center Height: 4.15cm/1.63"

Ring Space: 7.8cm/3.07"

Forward Extension: 2"

Item Weight: 151g/5.3 ounce

Package Weight: 175g

Package Size:14.5x5x8cm/5.70x1.96x3.14"

Package Includes: Scope Mount, Allen Wrench



Precision machined from lightweight 6061 aircraft-grade aluminum.

Comes in a matte black finish that ensures long-lasting performance.

2" of forward offset for flexible scope positioning & optimum eye relief.

Uses hardened steel Torx mounting hardware to prevent stripping of the bolts.

Integral recoil stops increase recoil resistance while reducing weight.

Mounts securely to any flat top Picatinny rail equipped rifle.

Fits any rifle scopes with a 25.4 mm tube diameter.

Available in Black and Flat Dark Earth.

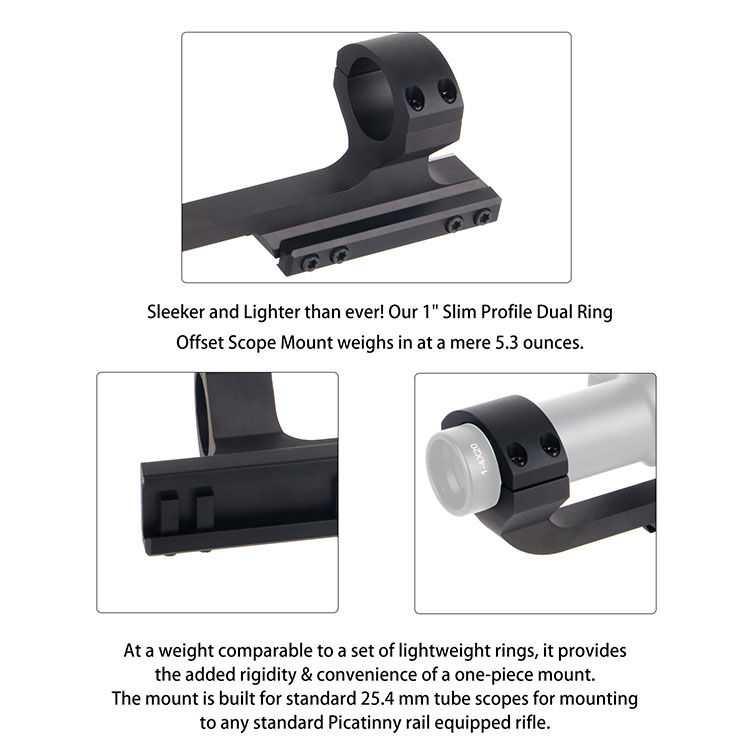

Sleeker and Lighter than ever! Our 1" Slim Profile Dual Ring Offset Scope Mount weighs in at a mere 5.3 ounces.

At a weight comparable to a set of lightweight rings, it provides the added rigidity & convenience of a one-piece mount.

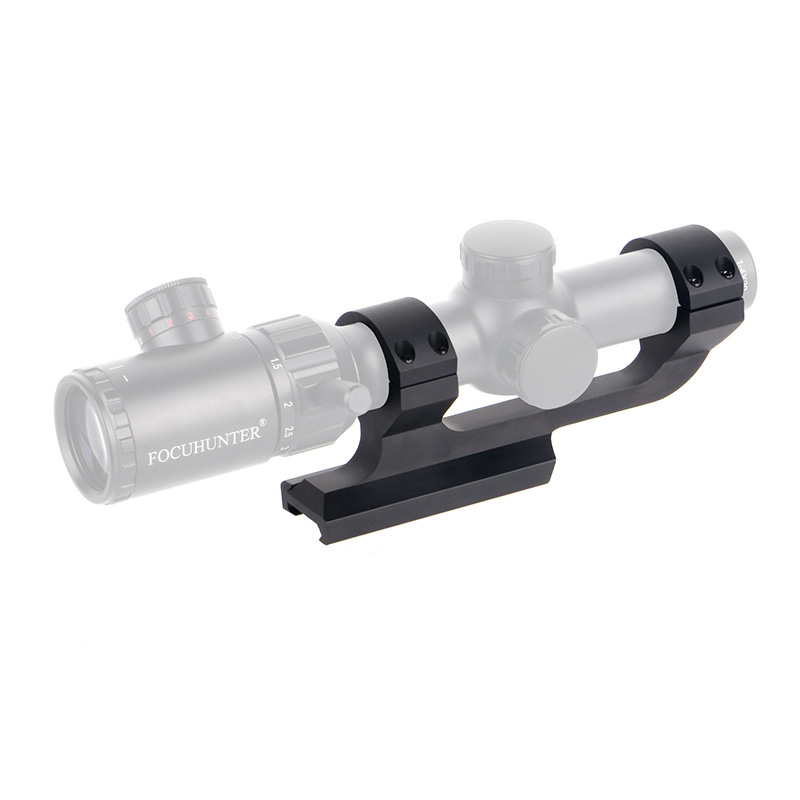

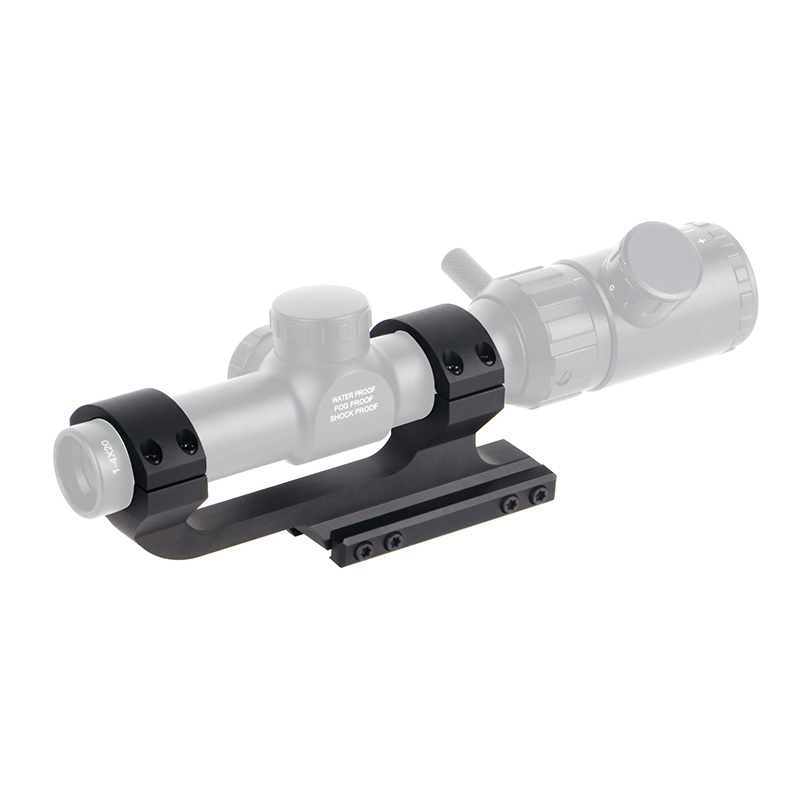

The mount is built for standard 25.4 mm tube scopes for mounting to any standard Picatinny rail equipped rifle.

There is 3.07" of spacing between rings, which are spaced farther apart to fit long tube scopes.

Provides a 2" of forward extension, allowing you to get the right eye relief and head placement for accurate shooting.

The height between the bottom of the base to the center of the scope rings is 1.63", providing 1.63" of vertical clearance.

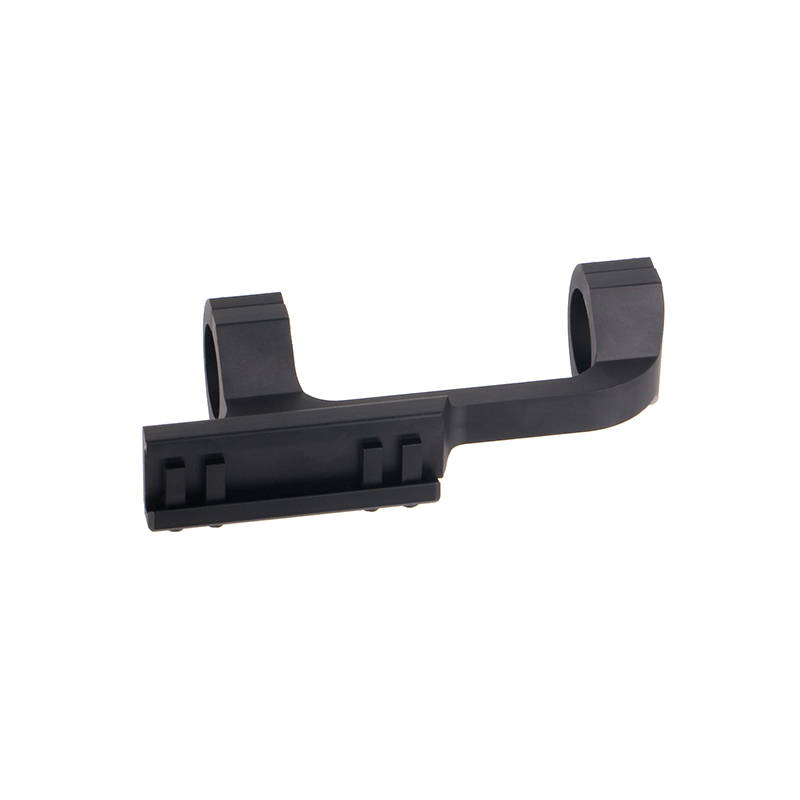

This mount also features 4 integral recoil stops, which significantly reduce the weight while increasing the strength.

Equip your AR rifle with a high powered, extended length scope using our 1" Slim Profile Offset Picatinny Scope Mount!
