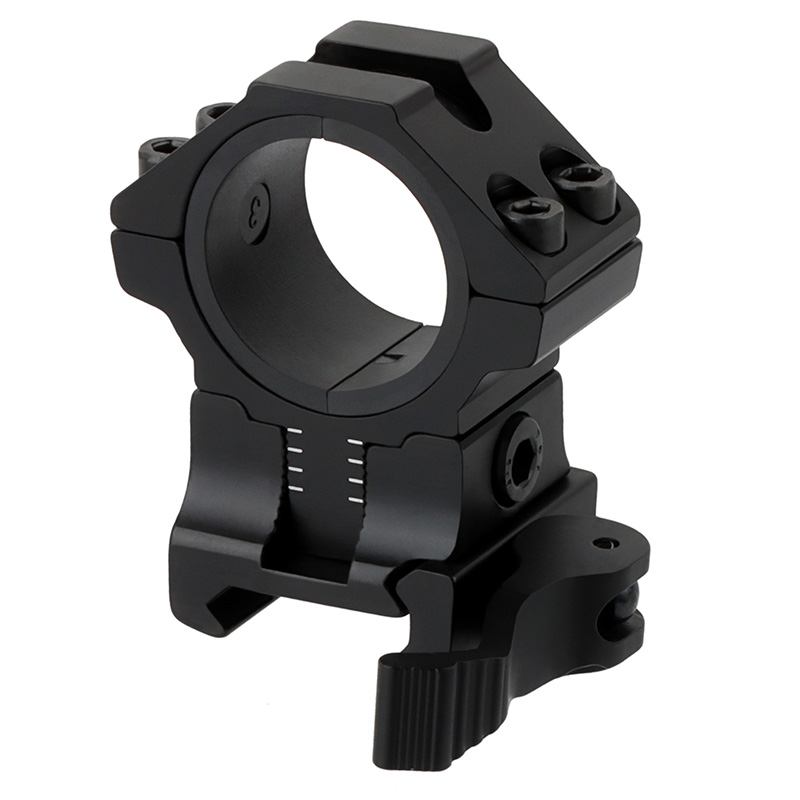

Optics Quick Detach QD Scope Rings 30mm 1" Picatinny

NO.:   MZJ-MOT-0145

- +
DETAILS Evaluate Inquiry Company

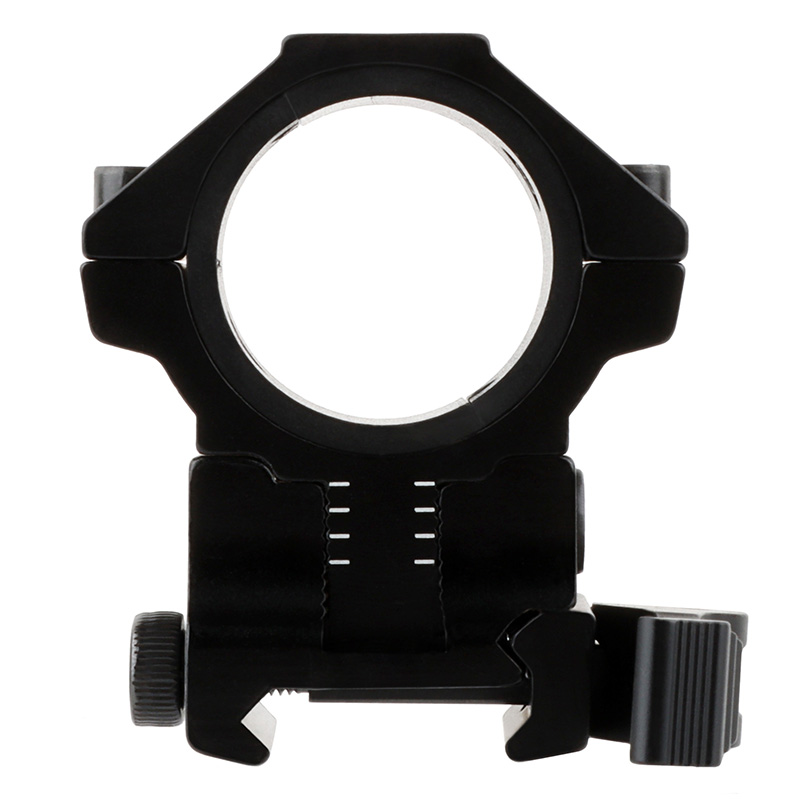

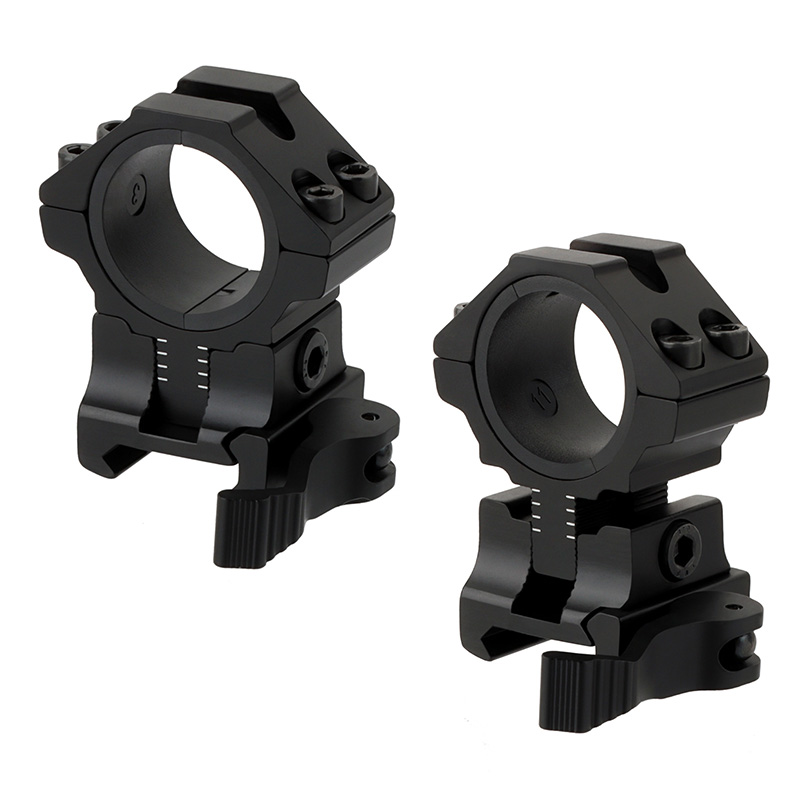

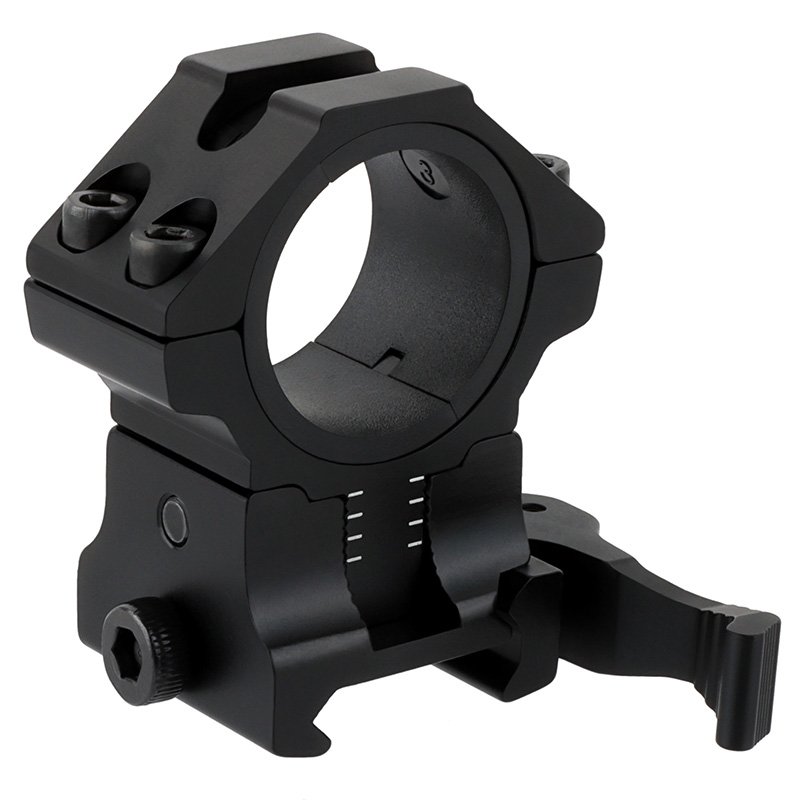

Optics Quick Detach QD Scope Rings 30mm 1" Picatinny

Style: Scope mount
Model Adjustable Height Picatinny Scope Rings
Color Black

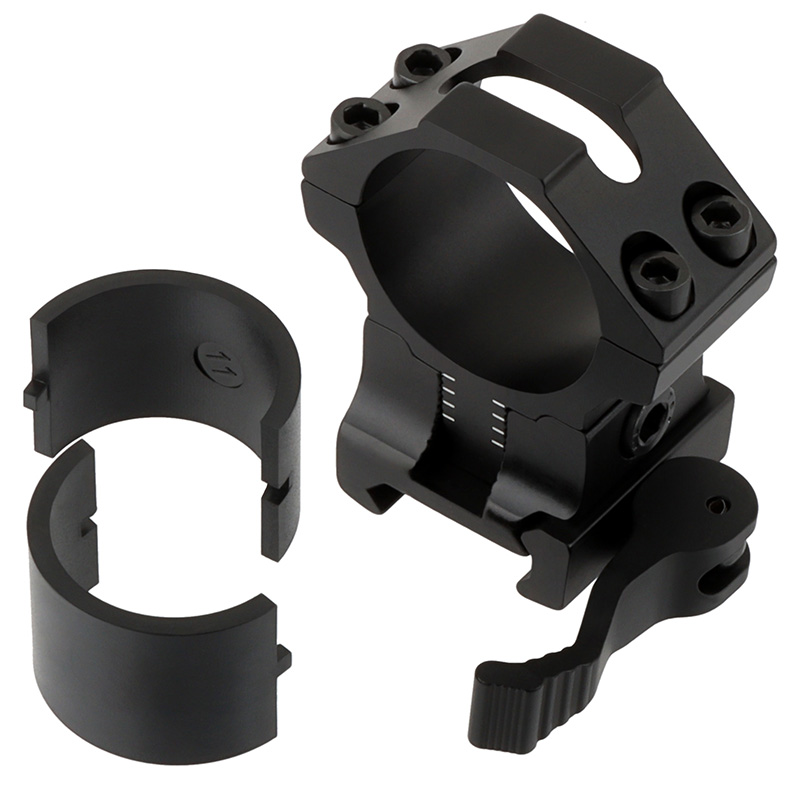

Tube : 25.4 & 30 mm/ 1 & 1.18 inches
Rail Standard: Picatinny Rail
Material: 6063 Aluminum Alloy
Surface Treatment anodized treatment
Increments: 1mm

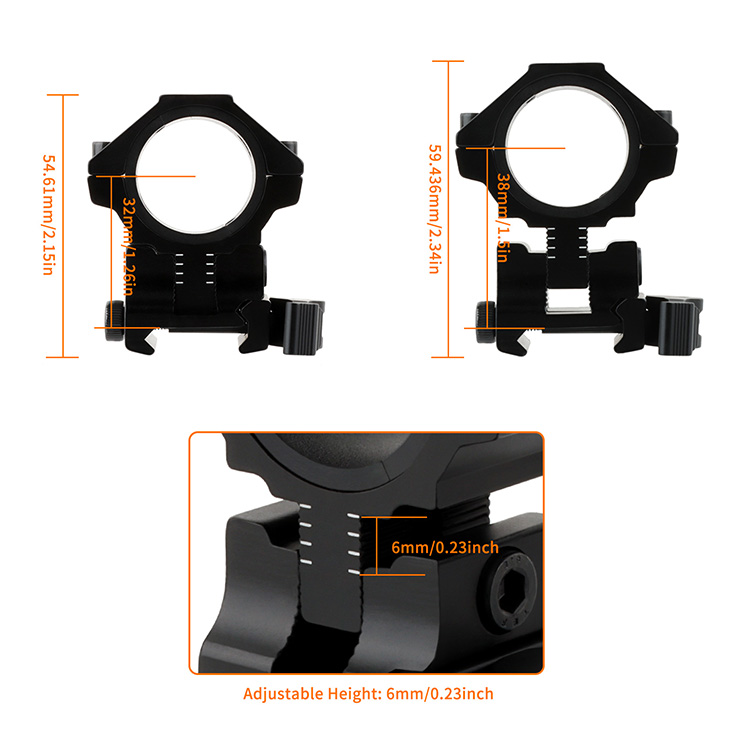

Center Hight 32 mm to 38 mm(1.26 inches to 1.5 inches)
Adjustable Height: 6mm/0.23inch

Weight: 76g / 2.7 oz
Package Weight: 98g / 3.46 oz

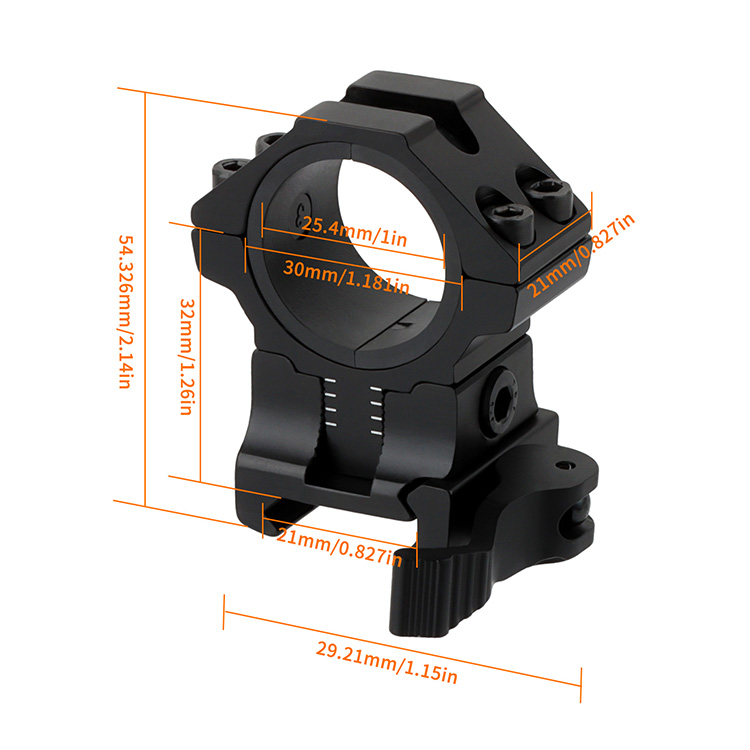

Height: 2.15 in (lowest) 2.34 in (highest)
Lowest Setting, Center of Scope to Base: 1.25 in
Highest Setting, Center of Scope to Base: 1.55 in
Length: 2.14 in
Width: 1.15 in

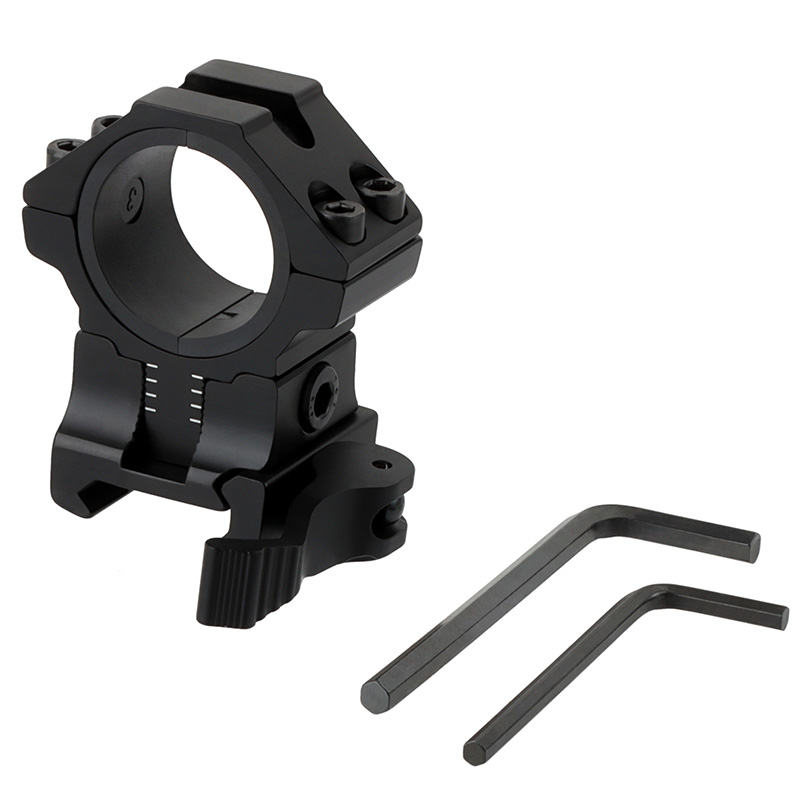

Items include:
1x  QD scope mount.

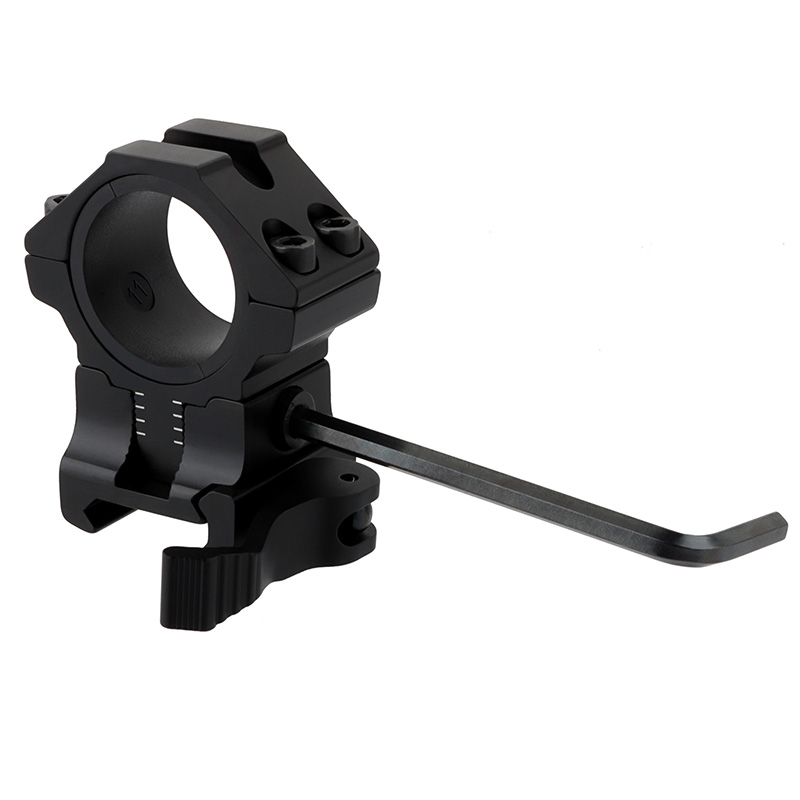

2x Alen Key Tow Different Sizes.

4-screw High Profile Ring
Precision Machined From Aircraft-grade Aluminum Alloy with Anodized Black

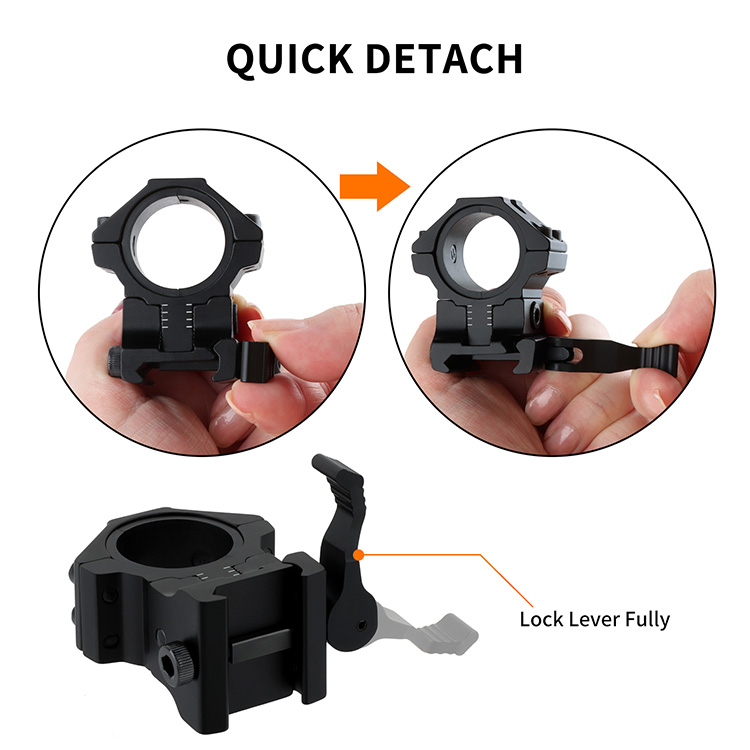

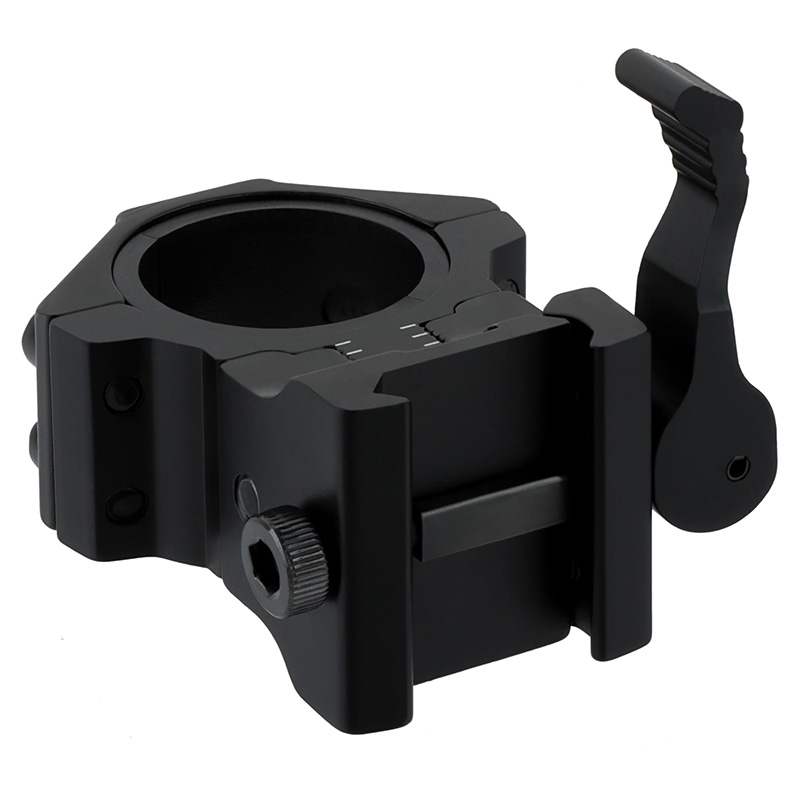

Robust and User Friendly Ergonomic Quick Detach/Lock Lever Fully Adjustable to Fit on Any Picatinny Rail
High Quality Synthetic Protective Tape Applied on Rings Internal Surface
Quick Detach mounts allow you to swith scopes quickly with minimal loss of zero.

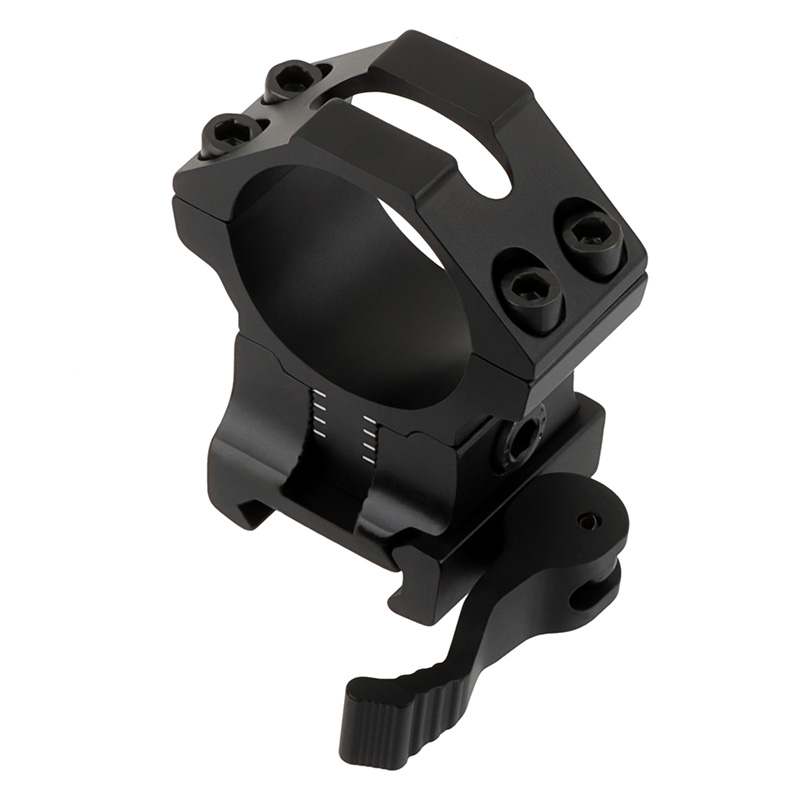

Each ring use of 4 screws
Hollow design reduces weight

The adjustable height design allows the shooter to find the most suitable and comfortable height of scope, position the center of the scope tube at a height of 32mm(1.26") to 38mm(1.5") from the base, Fits 30mm tube optics
The minimal adjustment scale is 1 mm.

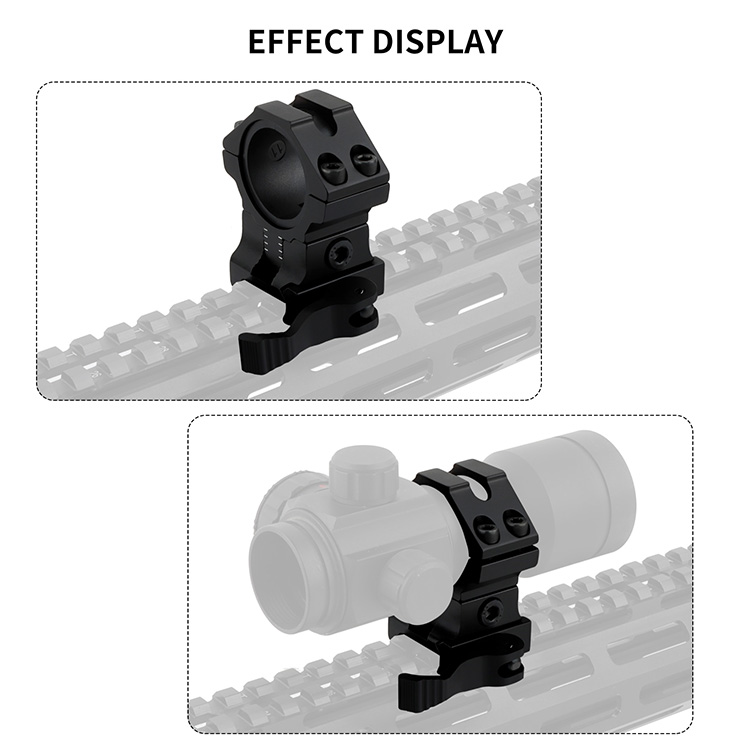

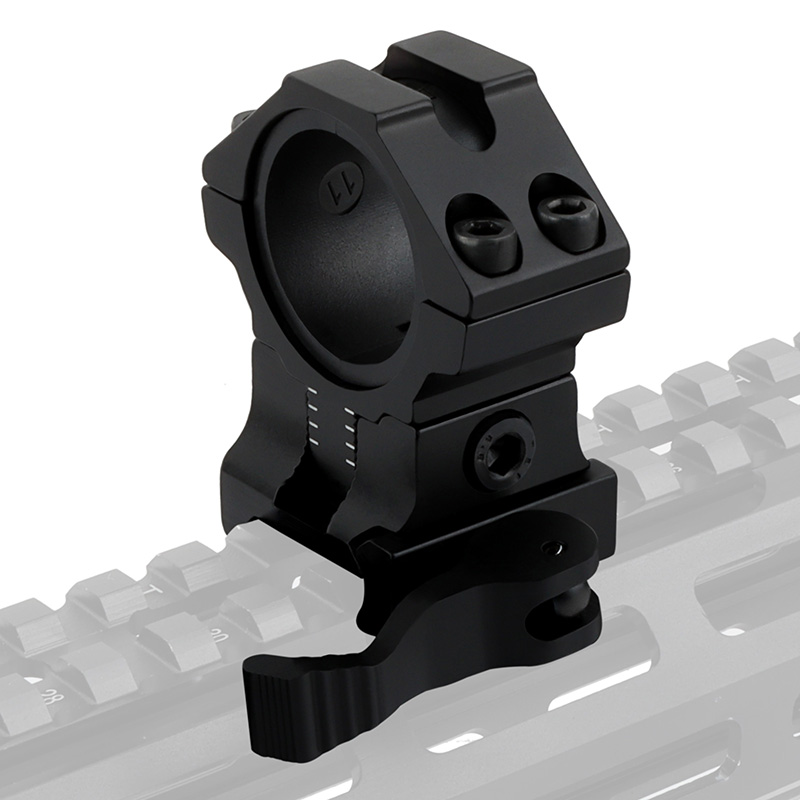

Fits Picatinny rail
Precision CNC machined from 6063 aluminum and finished in a colorful anodizing for unique appearance, passed rigorous accuracy and stability tests

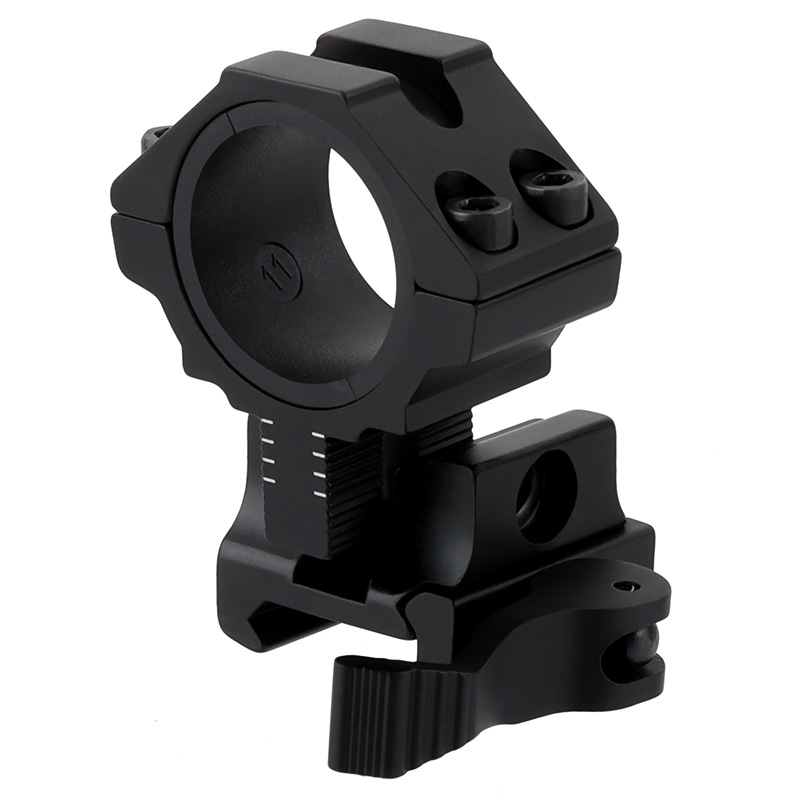

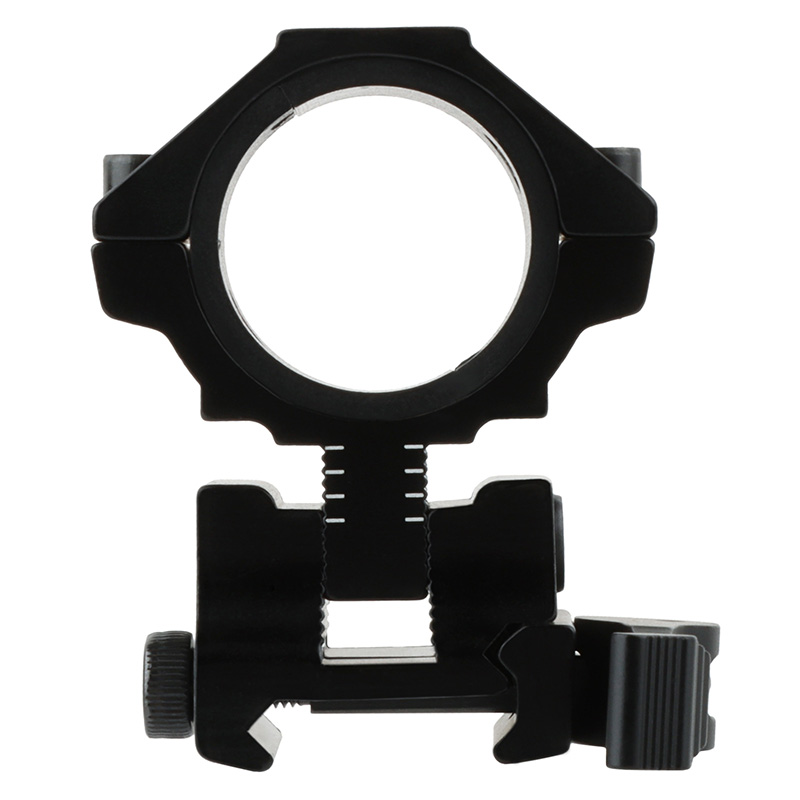

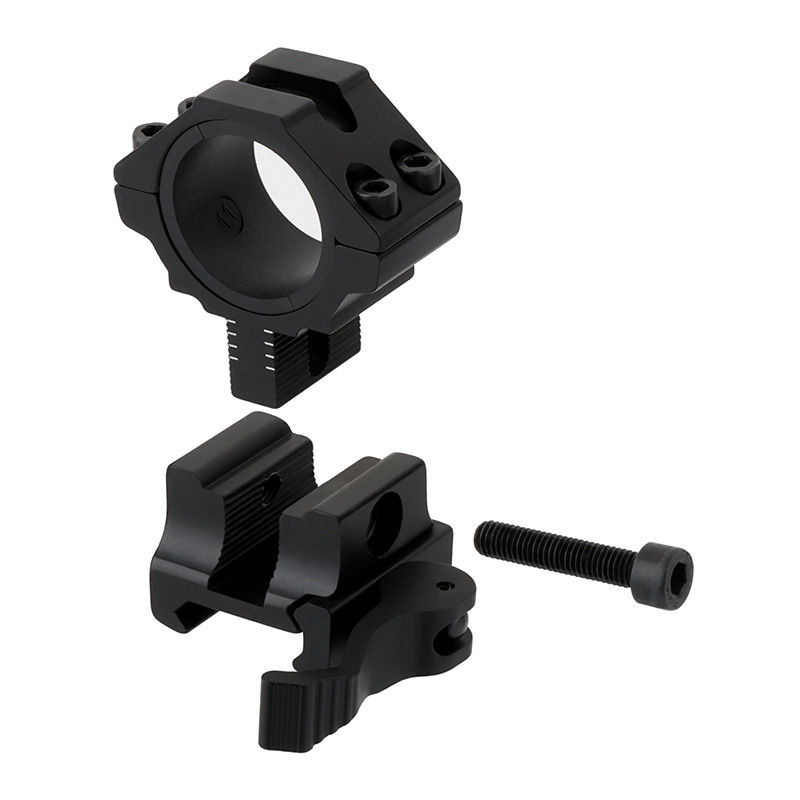

Adjustable Scope Rings allows the scope to move vertically along a guided path.

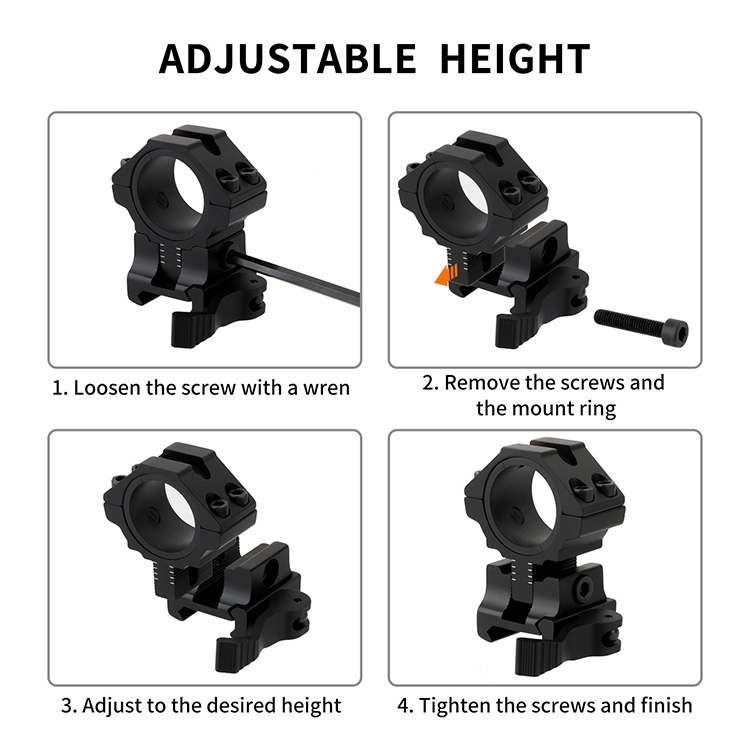

The mount is lockable in different positions using two screws. Adjustable mounts are extremely helpful in maximizing a turret for dialing in airgunning.

These mounts can be used as low profile or adjust the to high profile too if your scope objective its too closed to your rifle barrel or shroud. The mount can also come handy if you have not been able to use your favorite scope due to lack of space between the rings or the odd position of your dovetail or picatinny rail on your gun.

Adjust your Scope Height,proprietary height-adjusting system allows you to control the height of your scope in increments of 0.039 inch (1 mm).
