Photon RT 4.5x42S Digital Night Vision Rifle Scope



Specifications

Item No.: MZJ-NVP-0009

Sensor Type: CMOS

Camera Resolution:768x576 pixels

Display Type: LCD

Display Resolution :640x480pix

Magnification: 4.5 - 9 x

Objective Lens: 42mm

Tube Diameter: 30 mm

Eye Relief:70 mm

Exit Pupil: 5mm

Reticle: 6 reticle options with 4 different colors

Reticle Focal Plane: Second Focal Plane (SFP)

Illumination Type: LED

Illumination Color: Red, White

Night Vision Generation: Digital

Diopter Adjustment: ±4 dpt

Field of View, Linear: 22.5 ft at 100 yds

Field of View, Angle: 4.3 degrees

Parallax: 220 yds

Range of Detection: 220 yds

IR Wavelength : LED / 850 (visible) nm

Attachment/Mount Type: Weaver

Item Weight: 750g

Batteries: 4x 5 V(Not Included)

Run Time: 3.5 hours

Waterproof: Yes

Operating Temperature: -15°C~ +50°C

Level of Protection (acc. to IEC 60529) IPX5

Dimensions :421x100x92mm/16.57x3.94x3.62"



Package Contents

1X Photon RT 4.5x42S Digital Night Vision Rifle Scope

2X Carrying Case

3X User Manual

4X USB Cable

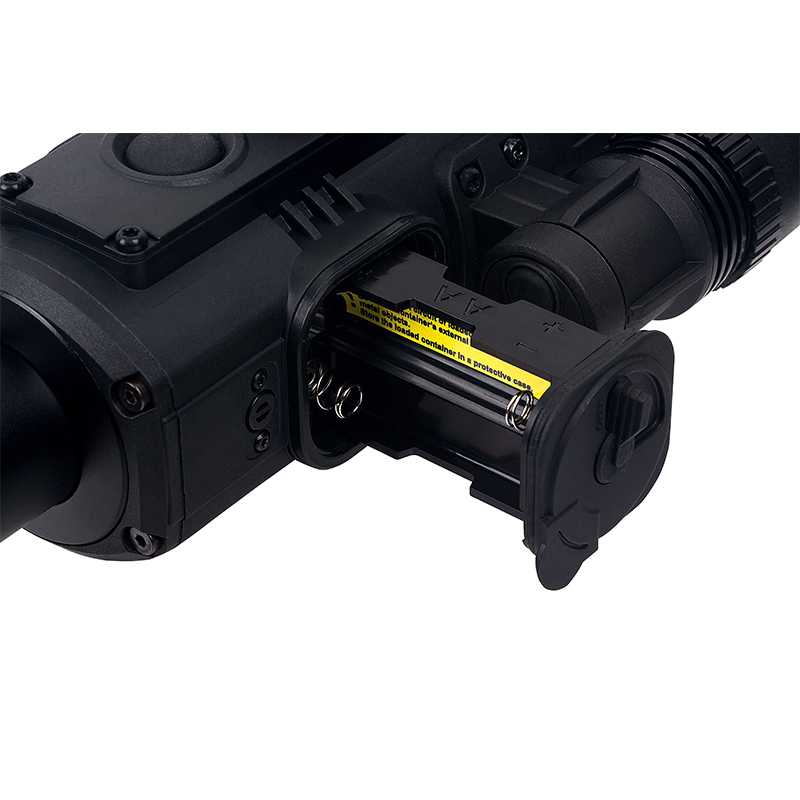

5X Spare Battery Container

6X Battery Container Pouch

7X Cleaning Cloth



Features

Approximate Range: 220 yards

Long-Range 850nm LED IR Illuminator

Built-in video/ sound recording

High nighttime sensitivity

4.5x optical magnification, 2x digital zoom magnification

Live Video Streaming to Smartphone/ tablet via Free App

Daytime operation possibility

Software Evolution Support

Recording and live YouTube streaming

Integration with iOS and Android devices

User selectable reticles: 6 shapes, 4 colors

One-shot zero function

Uses 4x 5 V Batteries

Quick-change power supply

Mounting on weapon with standard 30 mm rings



Benefits

Designed for crystal-clear views day or night, the revamped Photon RT 4.5x42s combines a 768x576 CMOS sensor with a 640x480 LCD display to produce high-quality images up to 220 yards away in darkness.

The RT's built-in video/sound recording feature can send videos and still images to your phone or computer via the Stream Vision App.

The Photon RT 4.5x42s also features a new 2x digital zoom, allowing far off targets to be easily identified.

The built-in 850nm IR illuminator is invisible and can't be seen when viewed directly. The RT boasts a 3.5-hour battery life with IR on from 4x 5V batteries.

Other features include 6 reticle options with 4 different colors, an extremely useful one-shot zeroing function, power input for external battery packs and a front focus objective lens.

Compatible with most aftermarket 30mm rings, the Photon's additional weaver rail on the side allows users to attach aftermarket IR illuminators and accessories.

The shockproof and IP55 water resistant Photon RT also includes a carrying case, user manual, USB cable, spare battery container, battery container pouch, and lens cloth.

The revamped Photon RT 4.5x42s Digital Night Vision Rifle Scope designed to deliver unmatched performance day or night.
