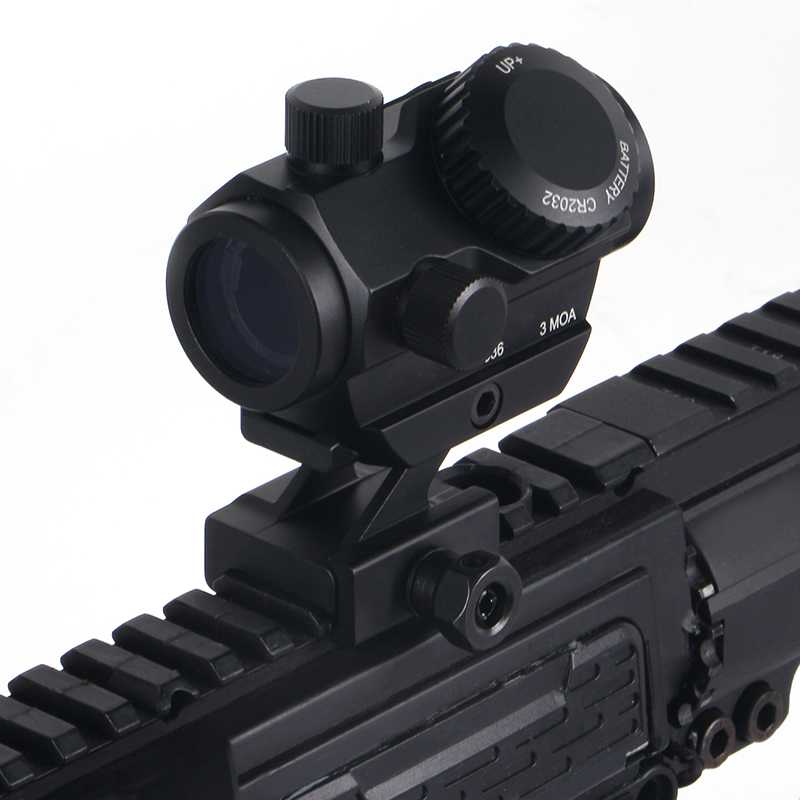

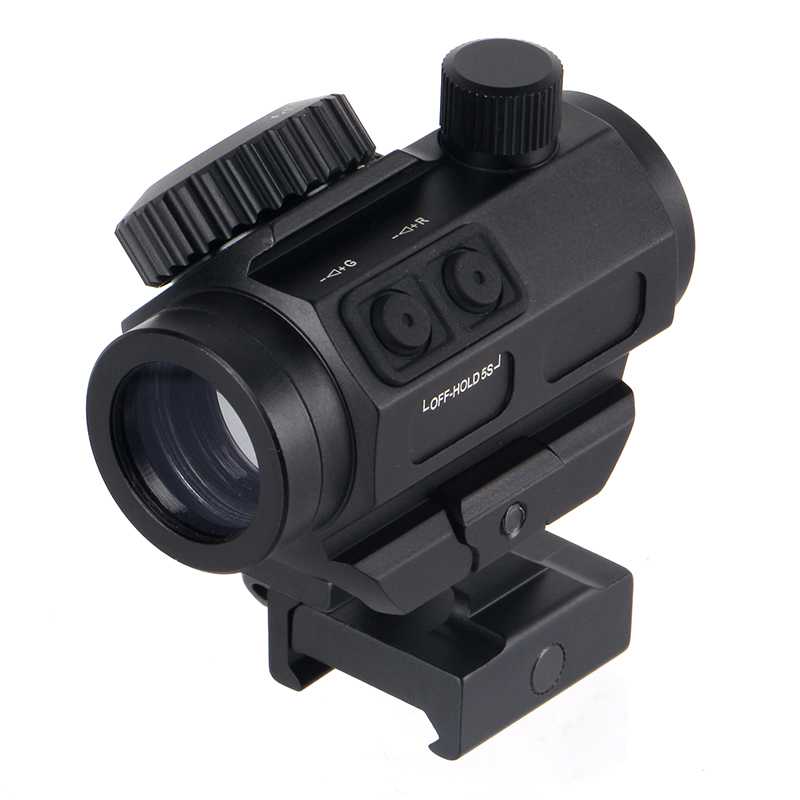

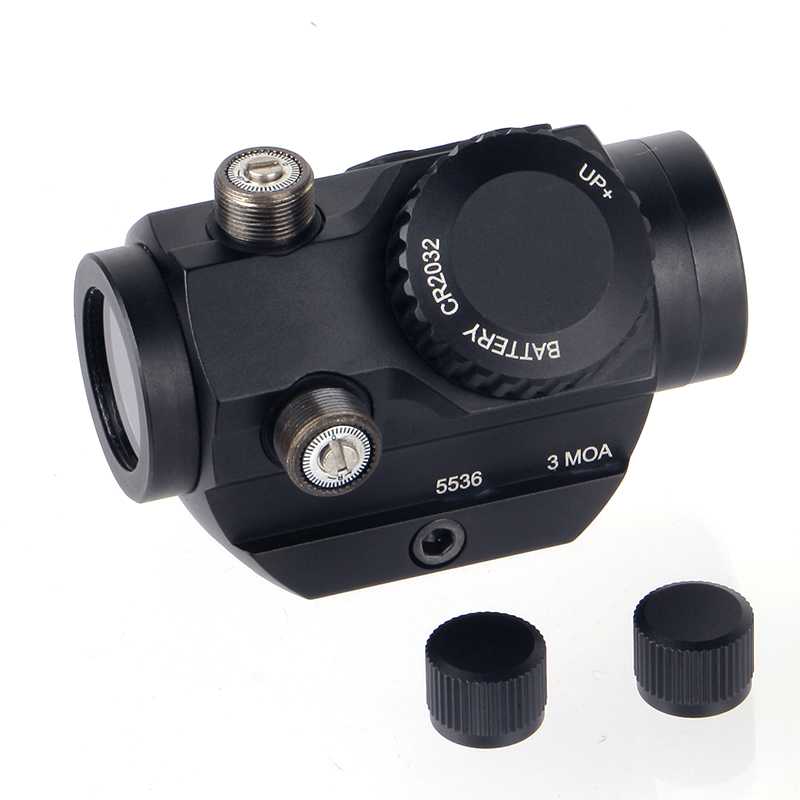

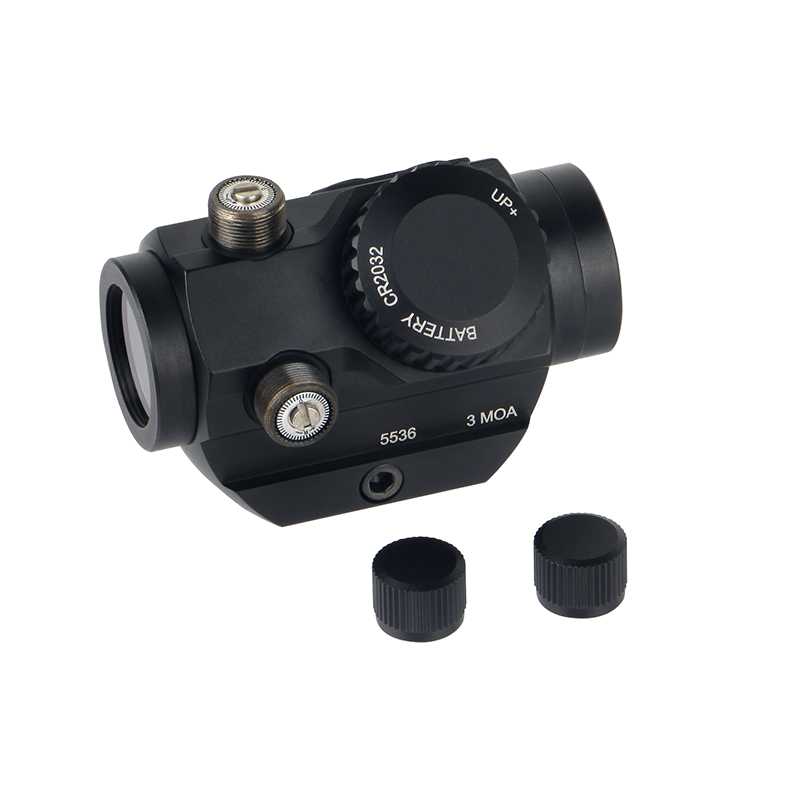

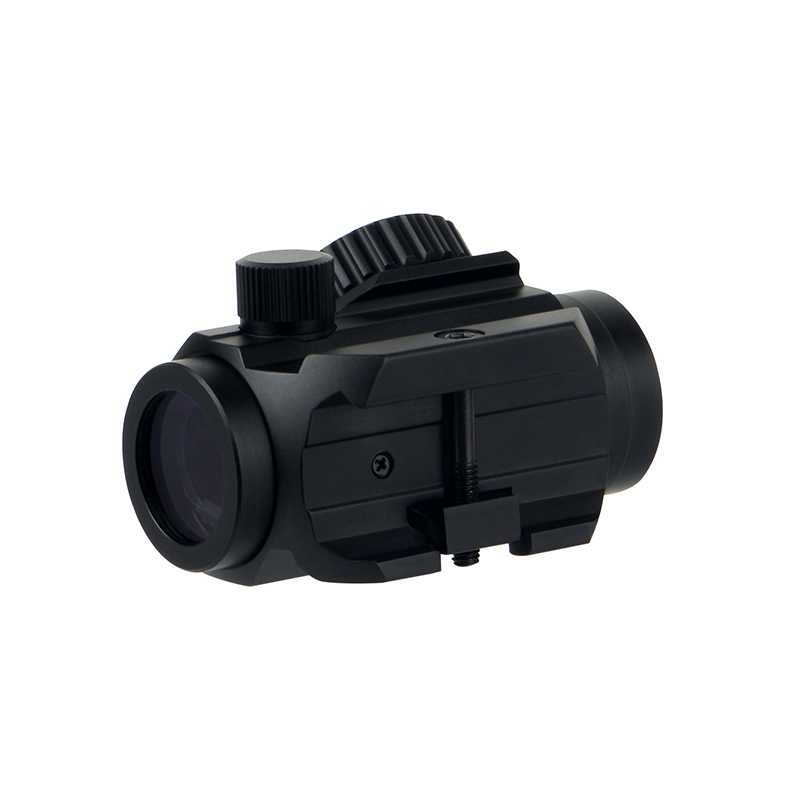

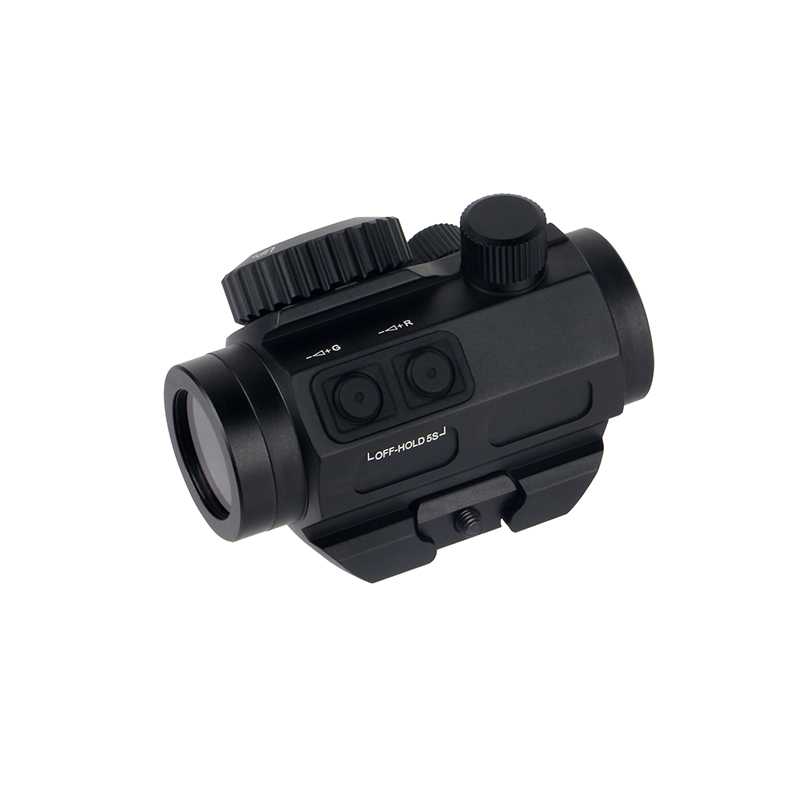

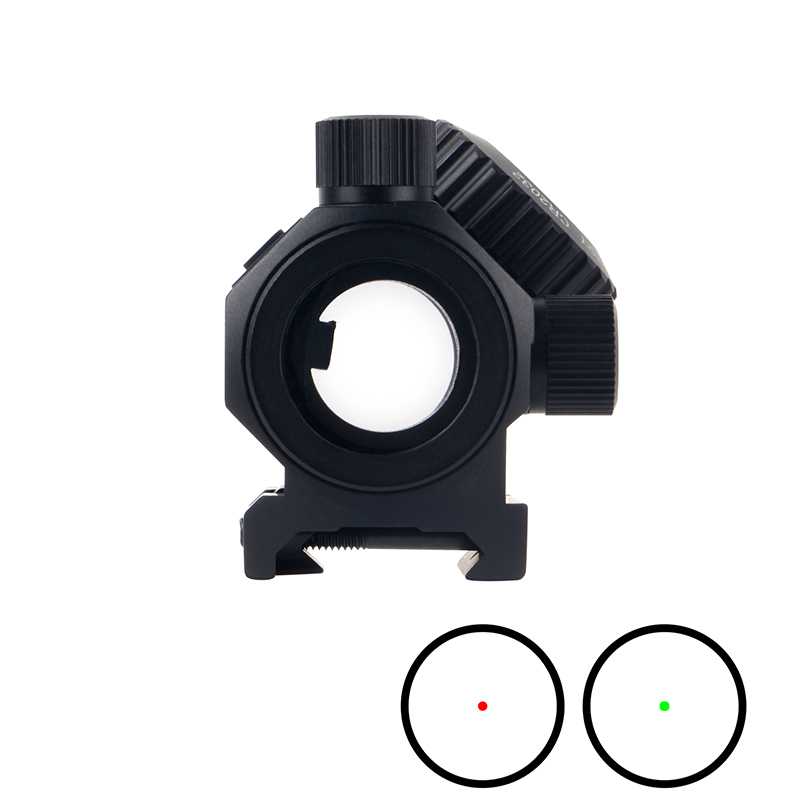

1X22 3MOA Red Green Dot Sight w/ 1" Riser Mount

No:MZJ-RDP-0118
Operating principle: Reflex collimator sight
Optical magnification: 1x
Aiming dot size: 3 MOA
Dot brightness：8 （red/green）setting Dot Brightness manually adjusted.
NoOptical coating: Anti-reflex, all surfaces and multi-layer.
Battery type: 3V lithium battery, type CR2032

PHYSICAL SPECIFICATIONS
Dimensions (L x W x H):68mmx43mmx46mm/ 2.7x1.7x1.8inch. sight with raise mount
Package dimensions (L x W x H) : 100mmx80mmx60mm/3.9x3.1x2.3inch
Weight sight only (not incl battery): 150g ( 5.3 oz)
Weight conf: 220 g (7.7 oz) incl lens covers and mount
Housing material: High strength Aluminum
Housing finish and color: Semi-matte black
Material mount and spacer std conf: High strength Aluminum
Surface treatment: Anodized, semi matte
Mater-Lens Covers:Rubber,black,non-glare finish

ENVIRONMENTAL SPECIFICATIONS
Temperature range operation: -30°C to +60°C (-20°F to +140°F)
Temperature range storage: -51°C to +71°C (-60°F to +160°F)
Humidity: 95% at +20°C to +50°C (+68°F to +122°F), cyclic.
Waterproof:10m,30min.
Shock: Withstands shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks).
Chemical resistance: Not affectd by weapon cleaners, luricants, oil or insert repellants.

MECHANICAL INTERFACE
Keyed suurface: Patent pending mount keyed to the sight body to absorb recoil .

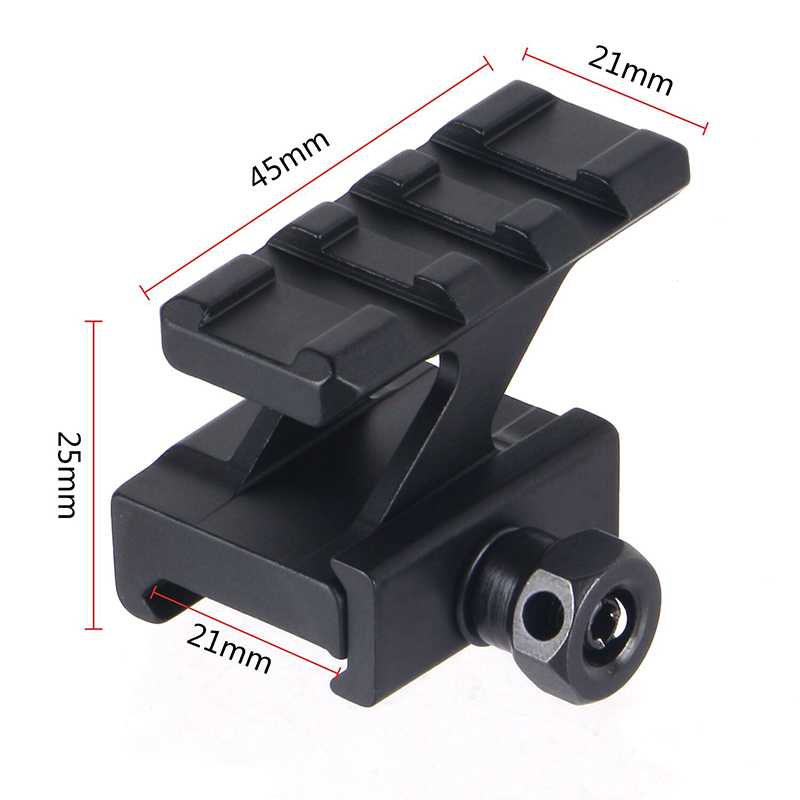

Keyed Mount :Mount for MIL-STD 1913 Rails Ststem and Weaver Rail include.

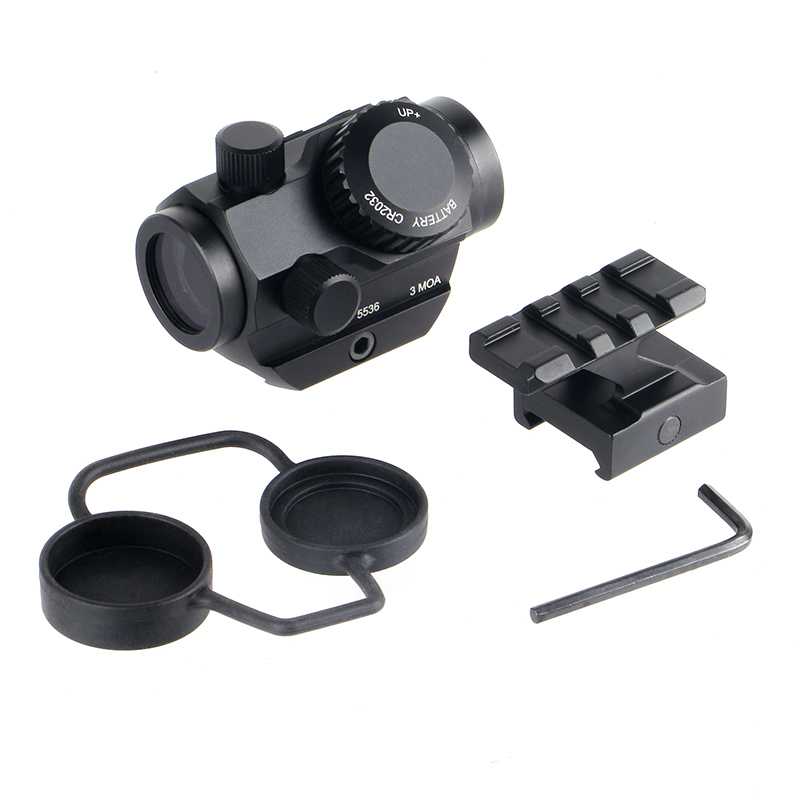

Accessories Included:

                              1X Mater-Lens Covers
1X Cleaning Cloth
1X Allen Wrench
1X Manual
