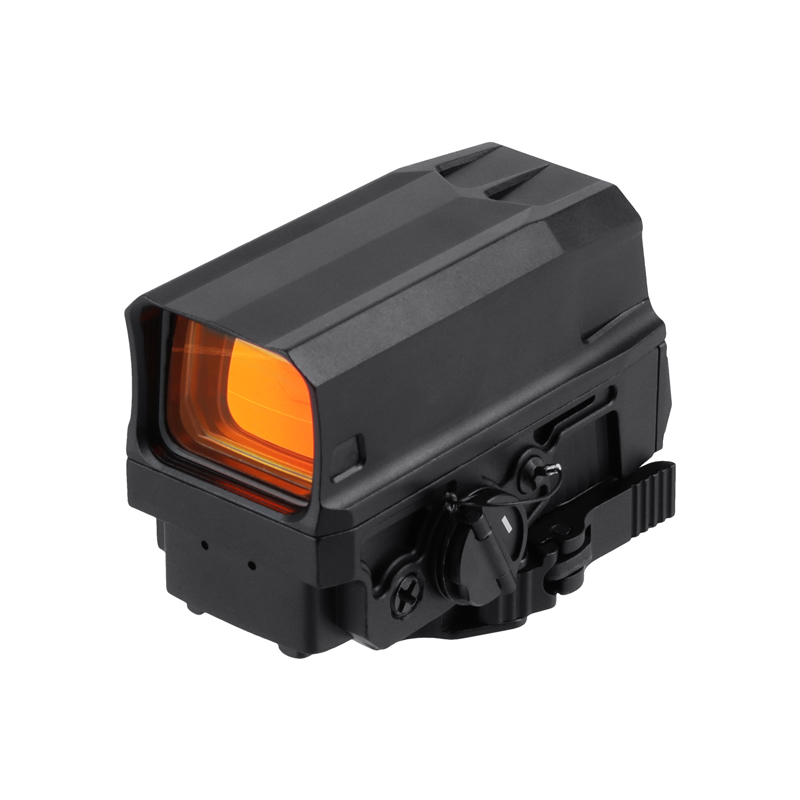

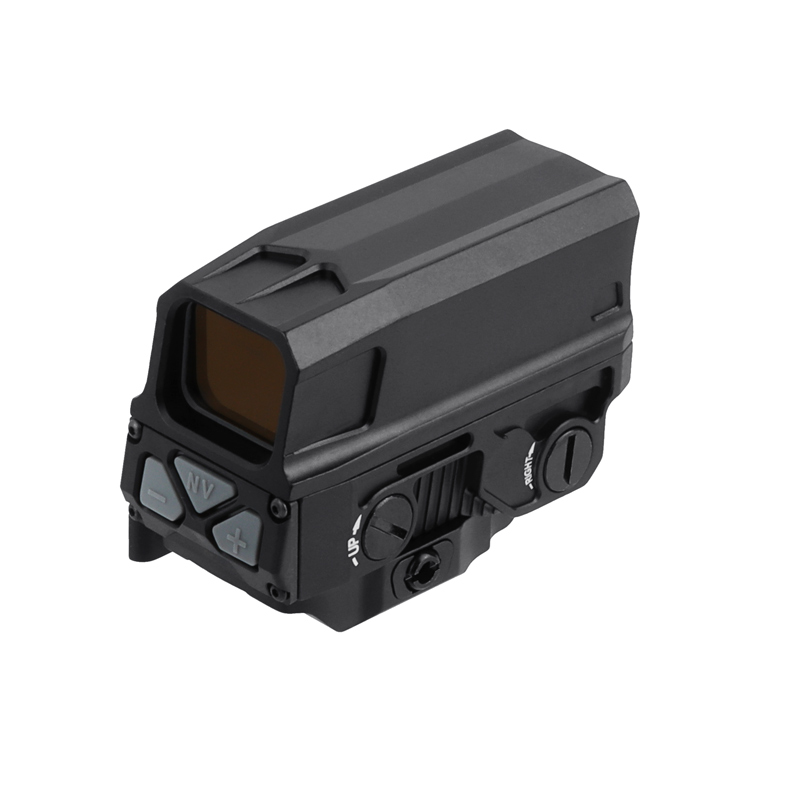

UH-1 Gen II Holographic Sight Night Vision Compatibility
Item No:MZJ-RDP-0175
Color：Black
Material：Aluminum
Magnification：1 x
Night-Vision Compatibility：Yes
Brightness Settings: 5 Levels(day/night)
Dot Color Bright Red
Dot Size： 1 MOA
Adjustment Graduation 1/2 MOA
Weight：355G/ 12 oz
Package Weight:490g/18 oz

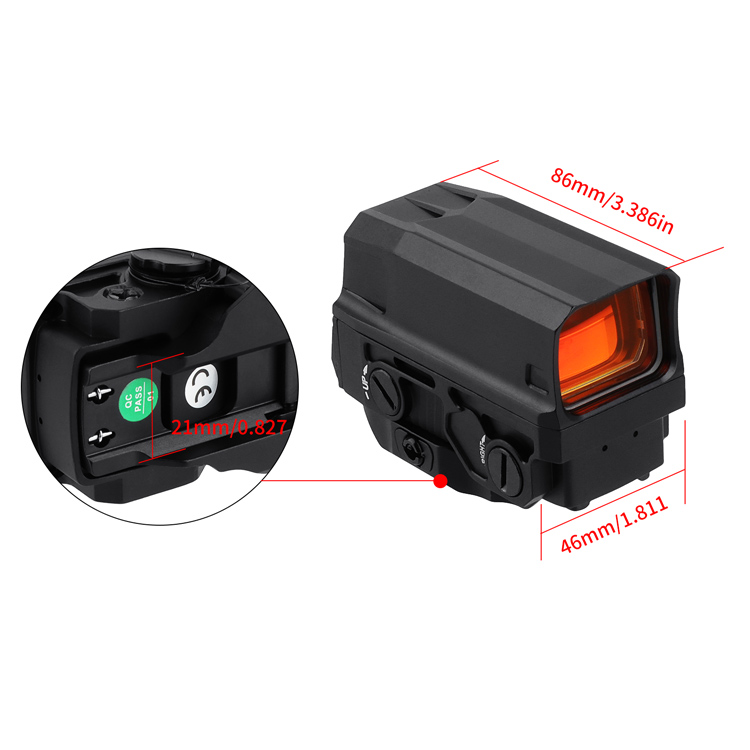

Package Size:16/7/11.5cm(6.3/2.7/4.5inch)
Lens Coating：Fully Multi-layer Coated
Fog Resistance：Yes, Nitrogen sealed
Impact Resistance：650G Recoil
Rail Type：Picatinny Quick-Release Mount
Battery：1x CR123A
Shockproof Rugged construction withstands recoil and impact.
O-ring seals prevent moisture, dust and debris from penetrating the holographic sight .

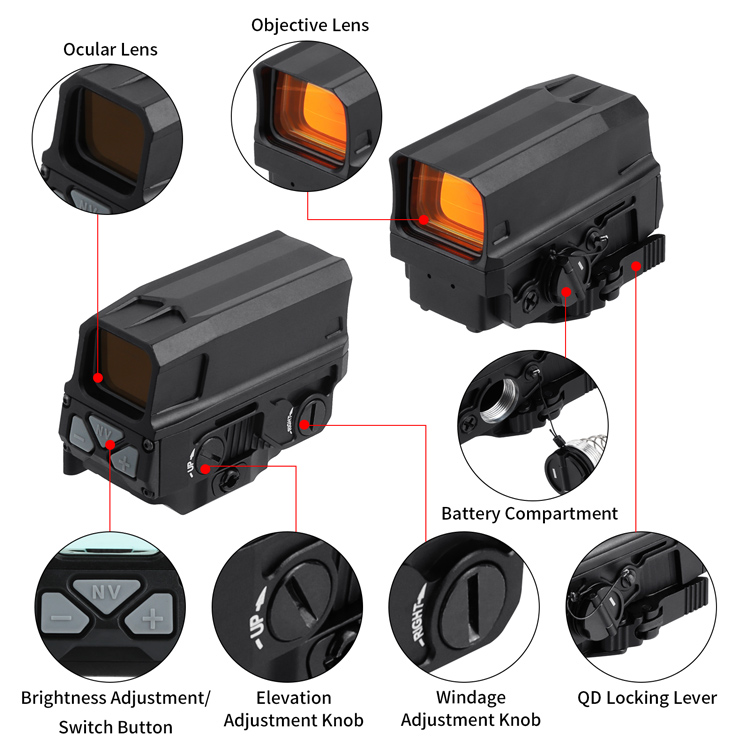

Rear facing controls Easily power up and click through intensity levels.

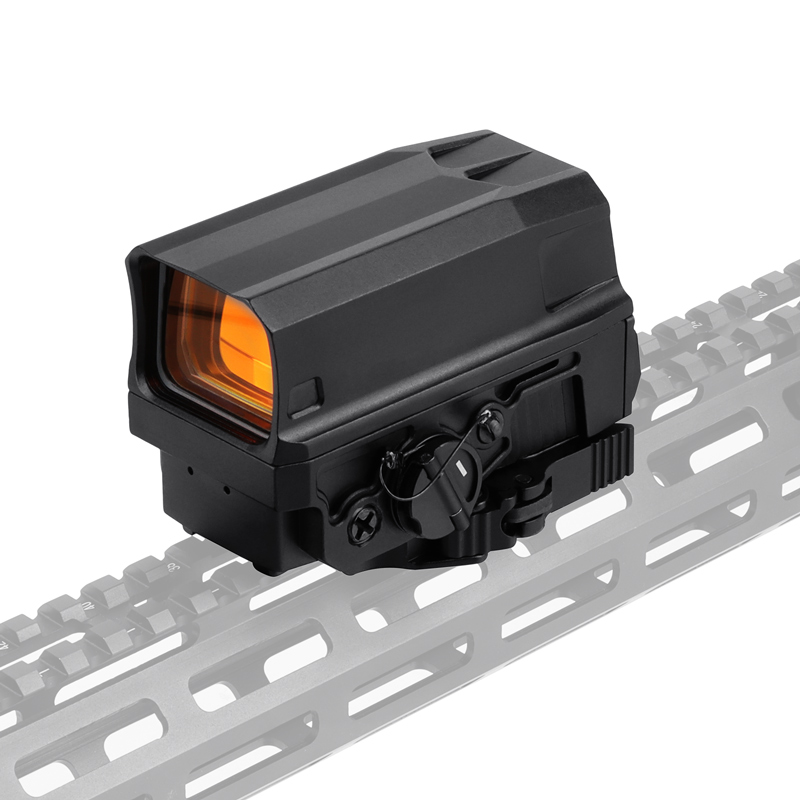

Integrated Mount Quickly attaches to any Weaver or Picatinny rail with the integrated mount.
Matte Anodized Finish Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position.
With the UH-1 Gen II, you get an improved sight picture through the enlarged viewing window, making target acquisition even faster, and easy battery changes with the toolless battery cover, plus a lighter load at just 12 ounces.

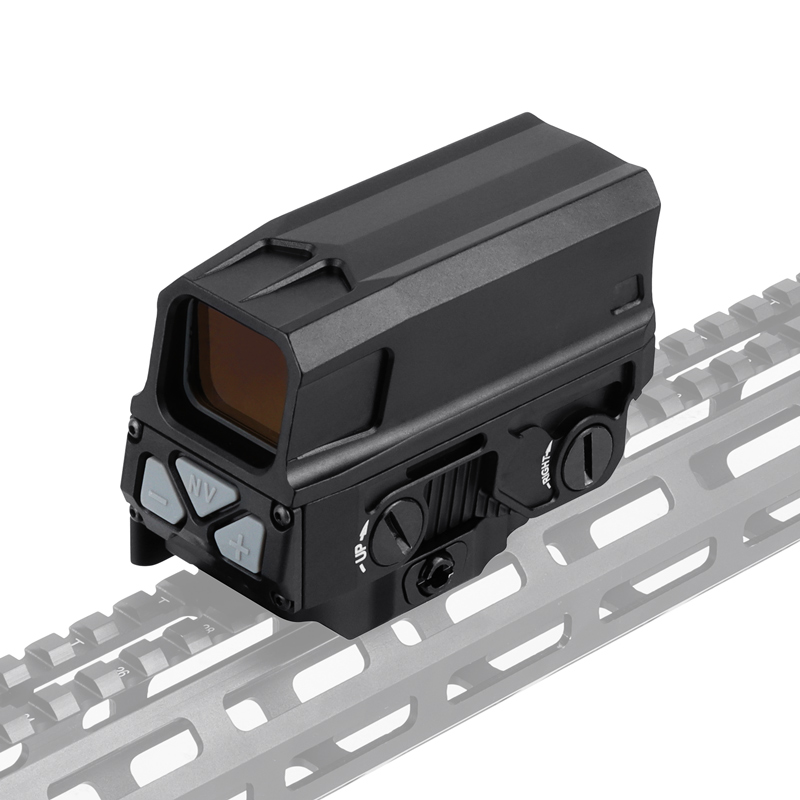

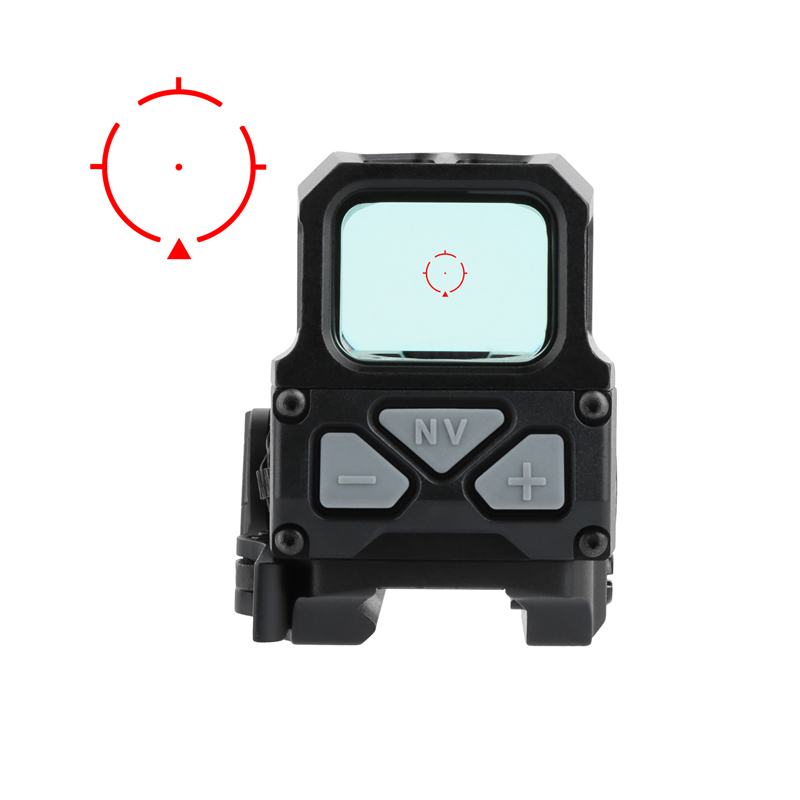

Night-Vision Button
To set the UH-1 to night-vision mode, press and hold the NV button. Adjust the illumination setting to your preferred brightness. Press and hold the NV button to return to the last daylight illumination setting. The UH-1 will return to the last NV setting used the next time you return to NV mode.
Note: When in night-vision mode, the reticle will only be visible with the use of a night-vision unit.

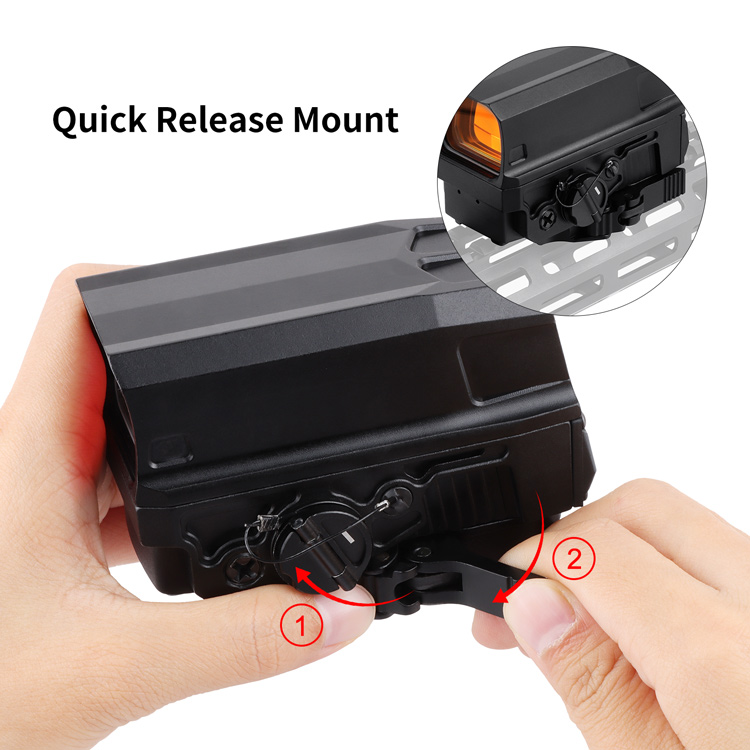

Integrated Quick-Release Mount
1. To open the mount, depress the lock button and swing the quick-release mount lever 90 degrees to the open position.
2. Position the UH-1 down onto the rail at desired location. Place the lever side onto the rail first, then rotate the unit so it is flush on the rail. Apply forward (towards the muzzle) pressure on the unit. Move mount lever back to closed position.
3. Check lever closing tension. Lever should close with moderate pressure using thumb or finger. It should not require excess force to close. If lever won’t close, closes with excess force, or seems extremely easy to close with little or no tension, proceed to step 4.
4. To adjust the tension, move the lever back to the open position. Using a flat head screwdriver or similar device, turn the adjustment nut left or right to loosen or tighten. Make small adjustments of one or two clicks, then check lever closing tension. It may be necessary to repeat this process a few times until proper tension is achieved.

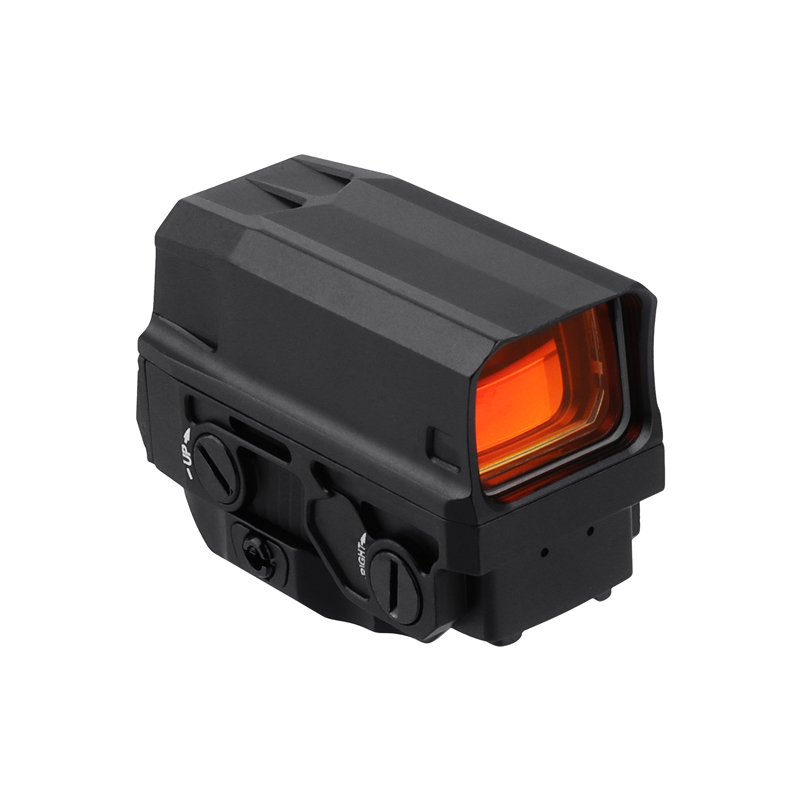

Windage & Elevation
Use a coin or flat-head item to turn the dials to adjust for point of aim. For both dials, one click will change the point of aim approximately ? MOA when zeroing. One full rotation of either dial will change the point of aim approximately 16.5 MOA—approximately 8.25" at 50 yards or 16.5" at 100 yards when zeroing.

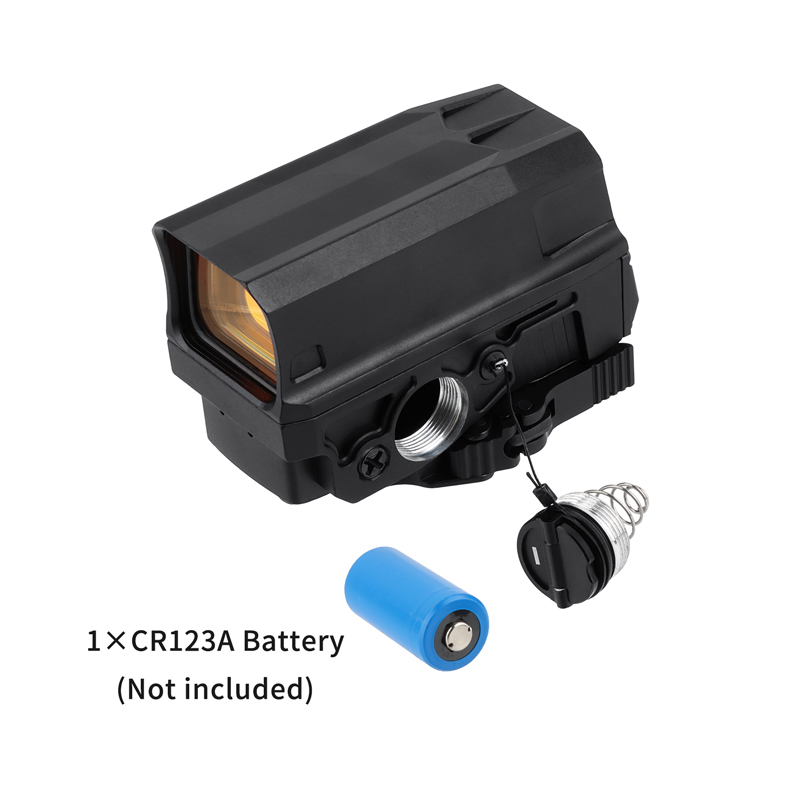

Battery
One CR123A battery powers the UH-1. To remove the tool-less battery cap, flip up the tab and turn the cap counterclockwise. Install the battery with the positve (+) end going into the unit. Replace the battery cap.
