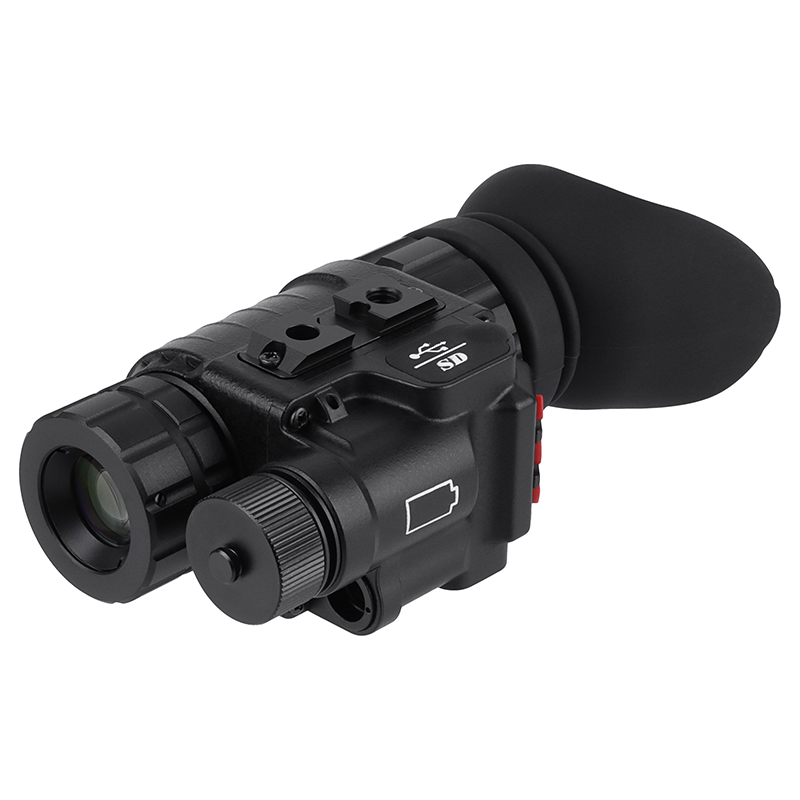

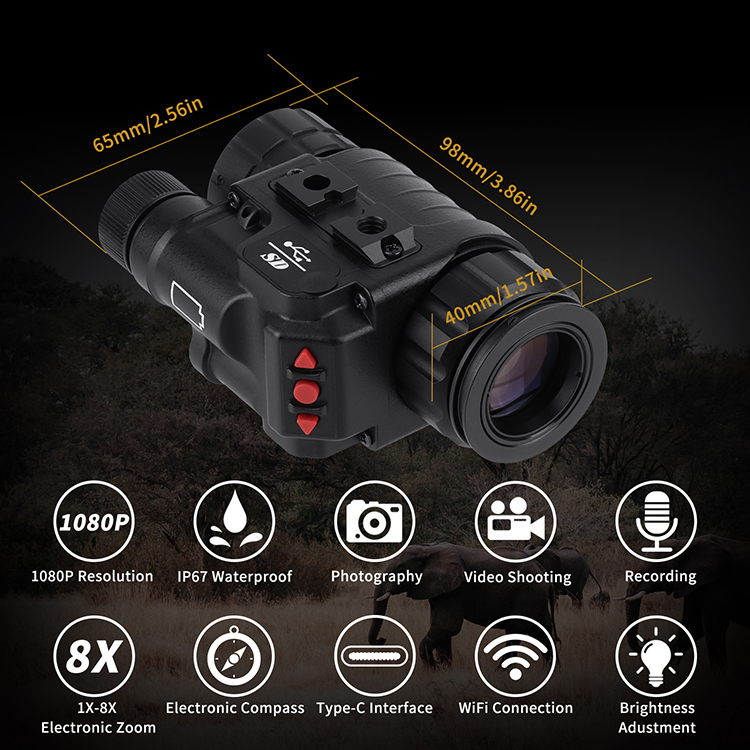

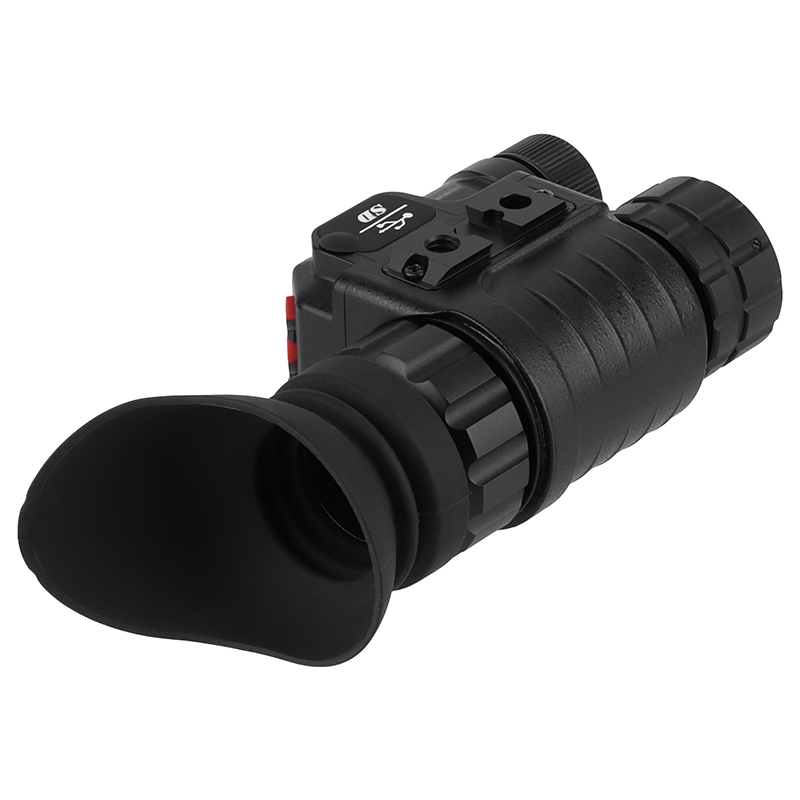

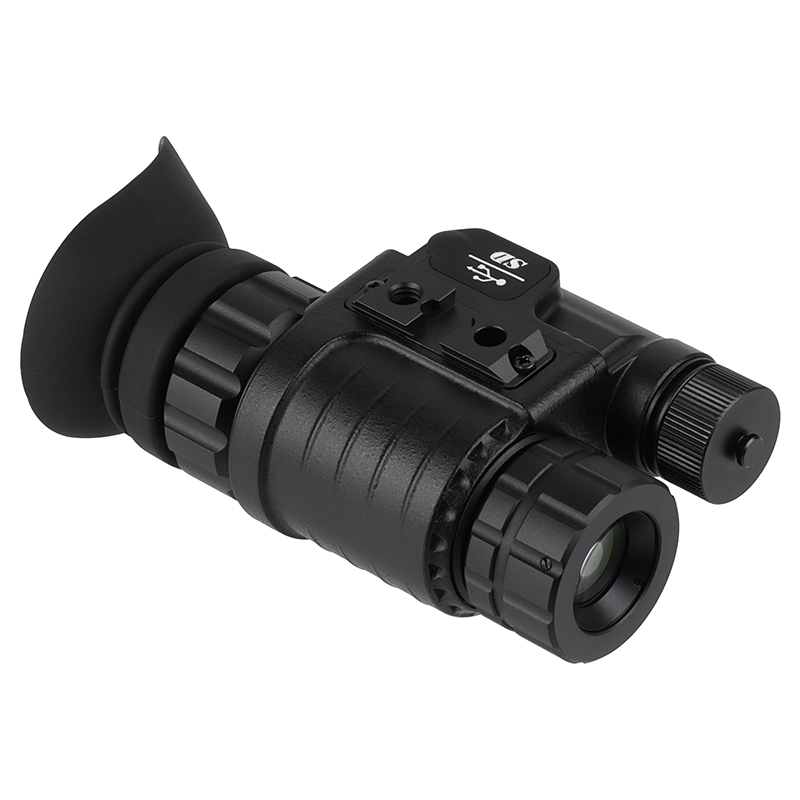

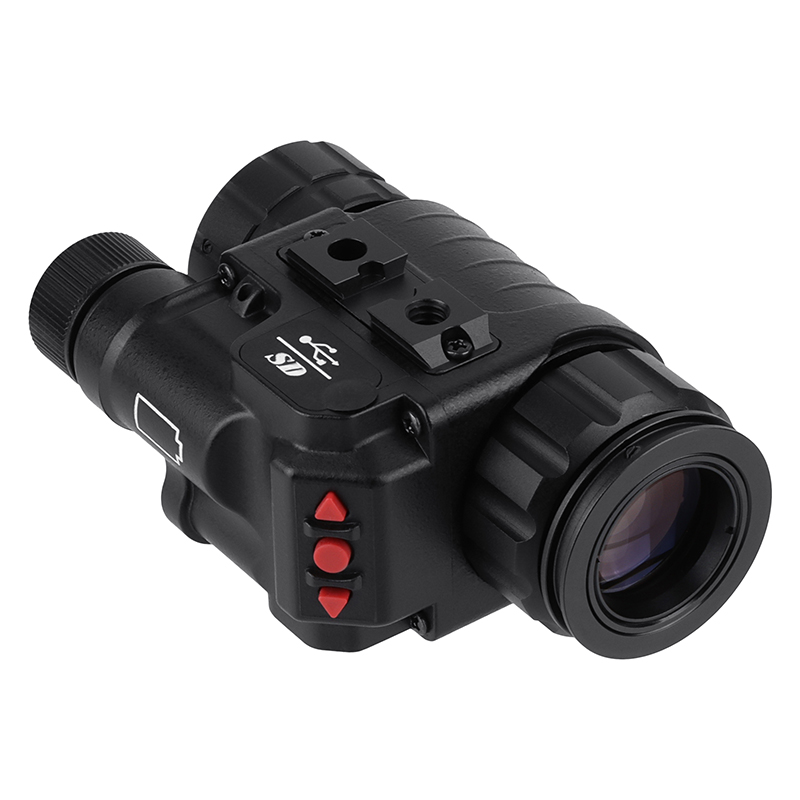

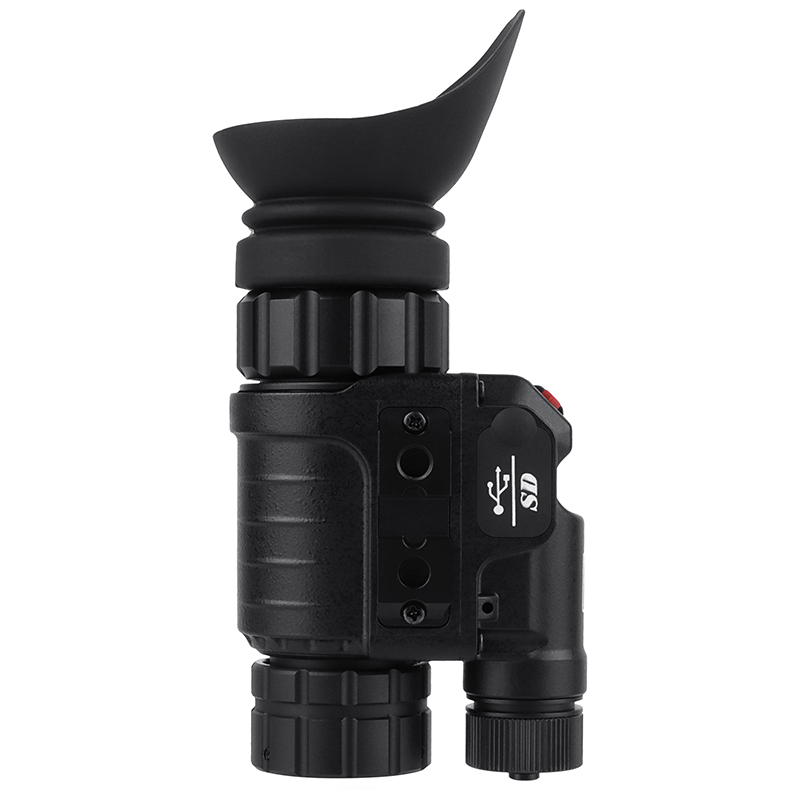

NVM-14 High-Definition Digital Night Vision

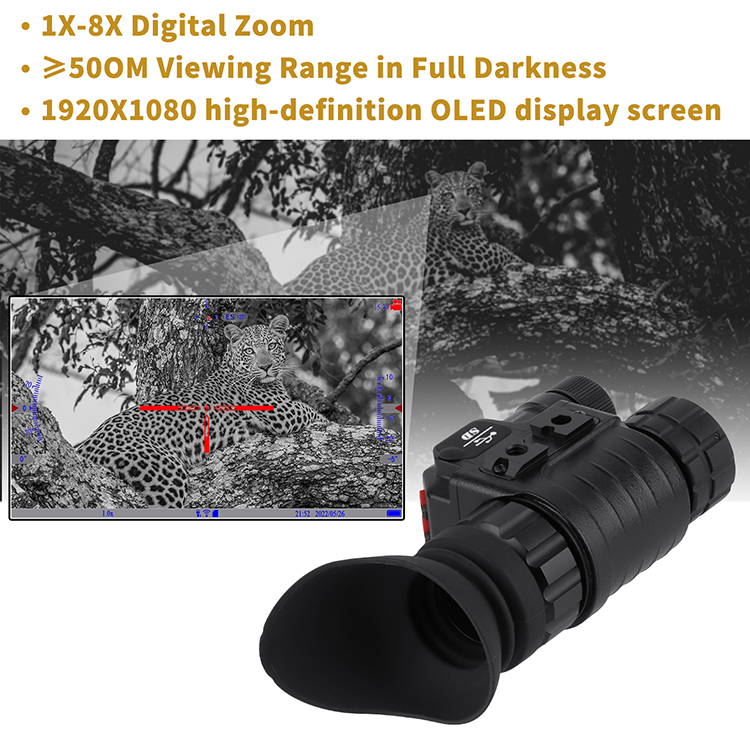

Electron magnification   1x-8x

Optical magnification   1x

Viewing Angle   21.5°x12°

Objective parameters   19.58mm / F1.2

The sensor   0.0001LUX Ultra low illumination black and white sensor

Display   1920x1080 OLED display

Exit pupil diameter   7.0mm

Pupillary exit distance   27mm

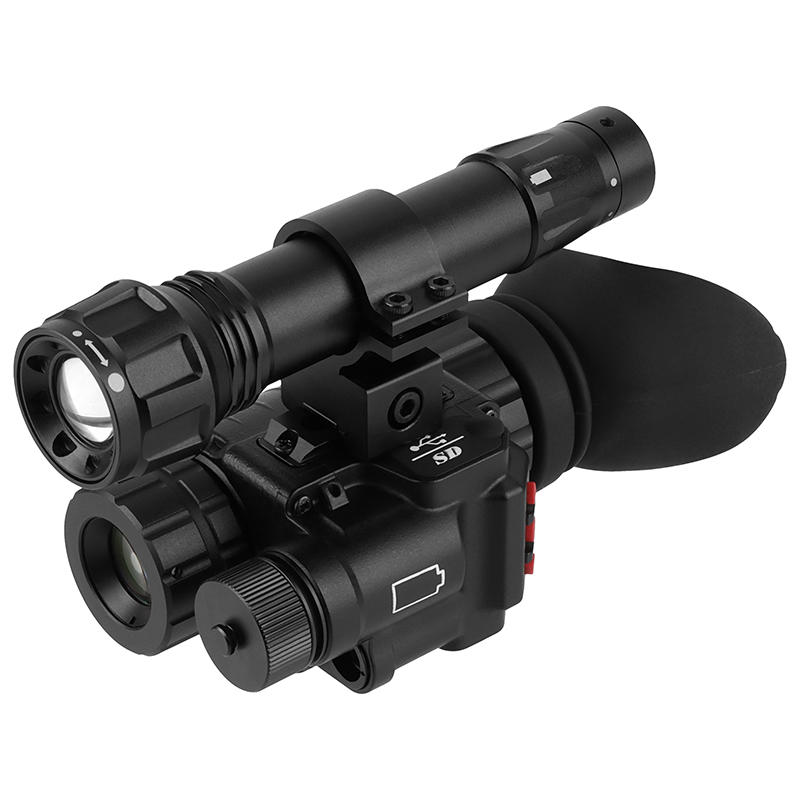

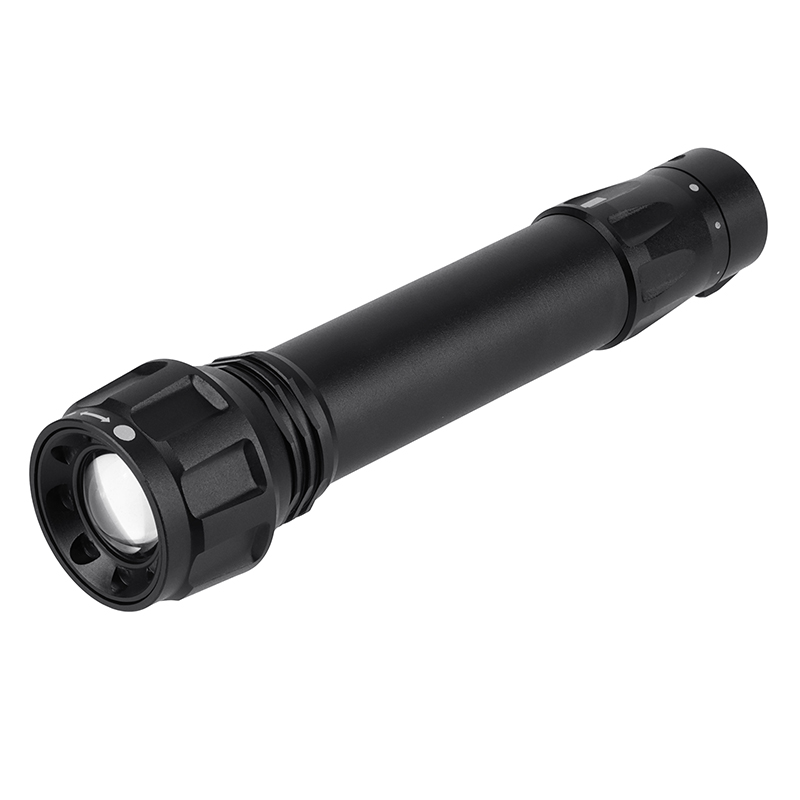

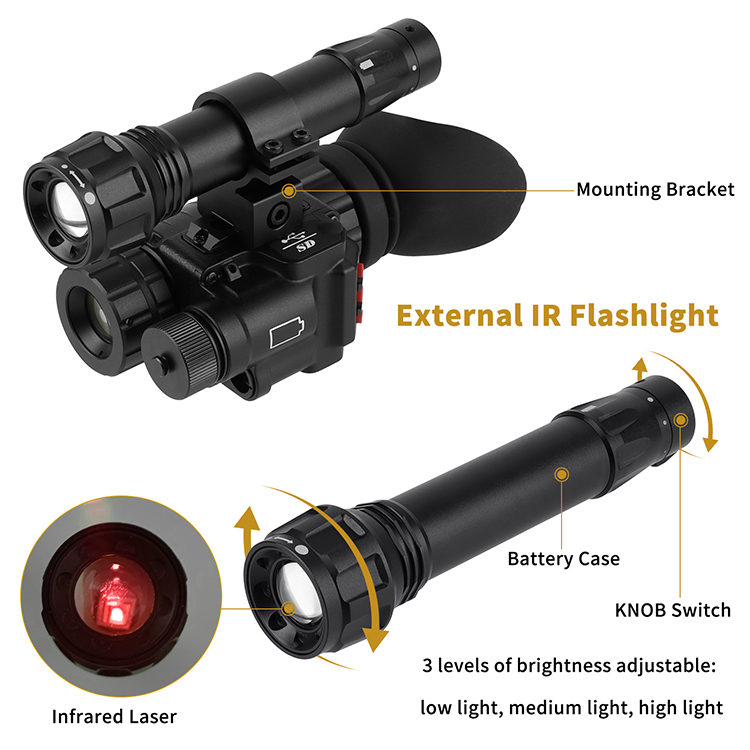

Auxiliary light source   850nm Infrared light

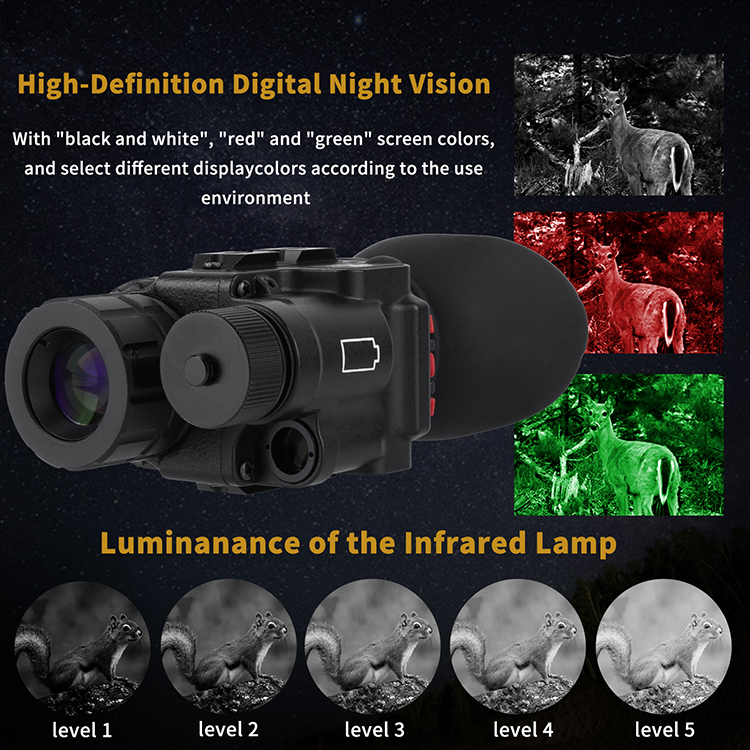

Image display mode   Three colors: black/white, red and green

The screen brightness   Level 1-7 is adjustable

Luminance of the infrared lamp   Level 1-5 is adjustable

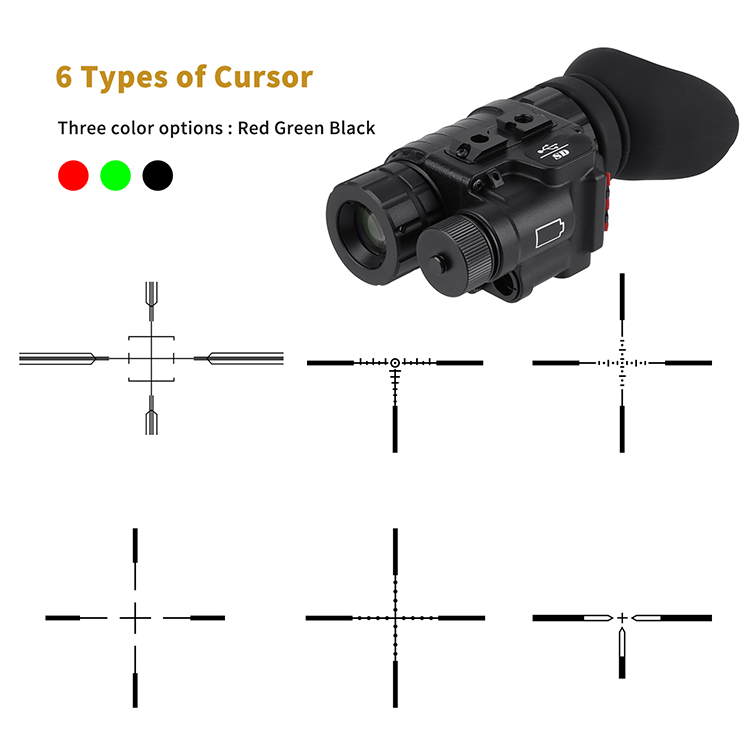

Cross dividing line   Six modes, red, green, black three color choice

Date and time setting   yes

Video function   yes

Memory card    8GB-128GB TF (Optional capacity)

Waterproof   IP65

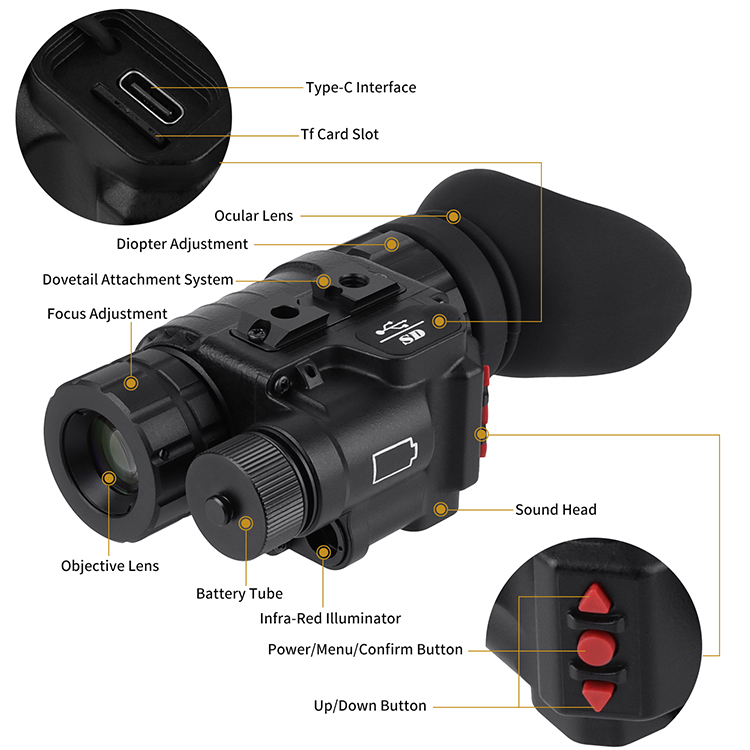

External interface   Type-c

Cable   Typle-cable

WIFI   Equipped with APP, compatible with iOS and Android system mobile phones

Electronic compass   All directions indication

Electronic gyroscope   Pitch Angle roll Angle dynamic display

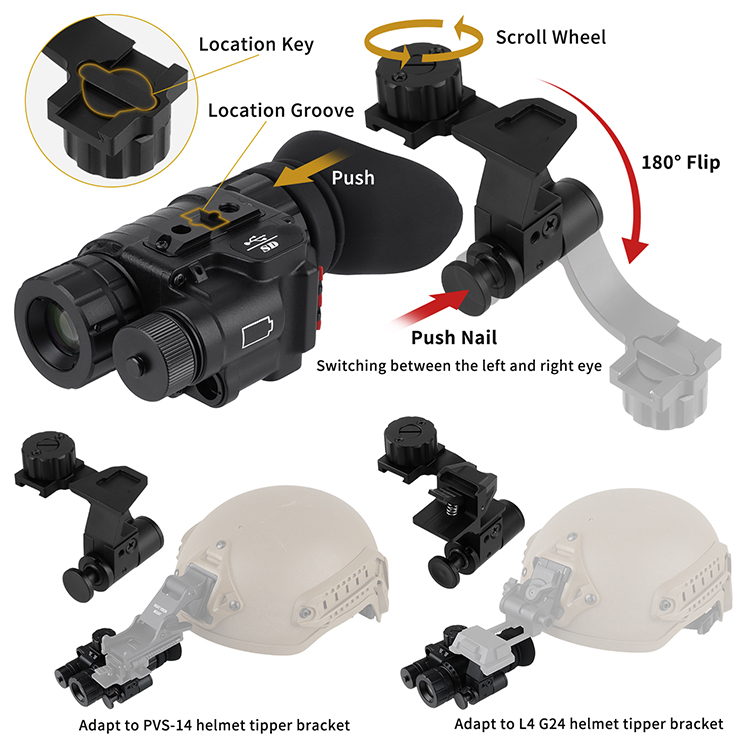

Interface to flip   0°-108°be interchangeable

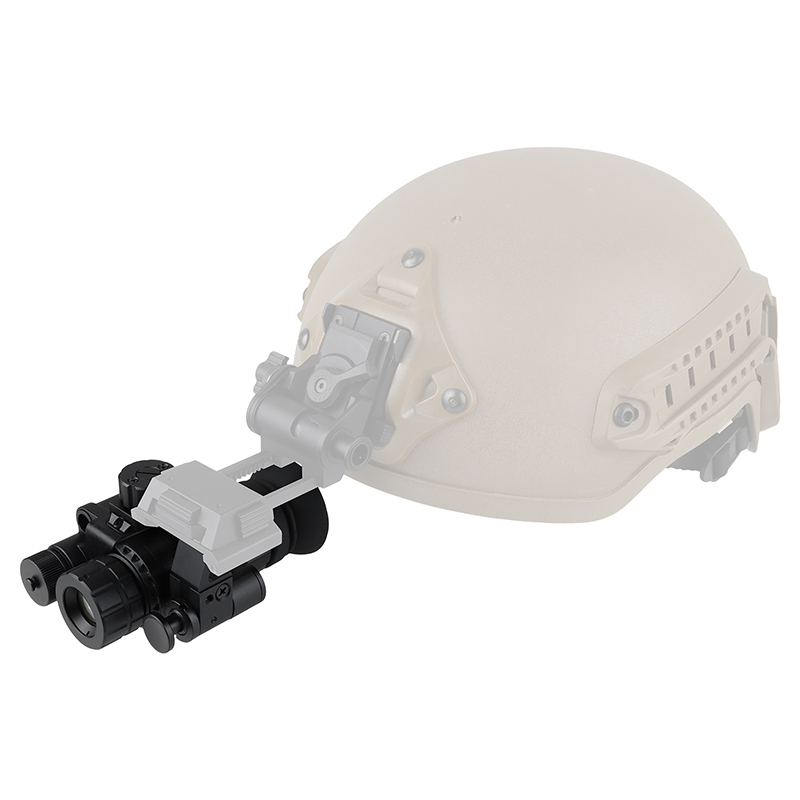

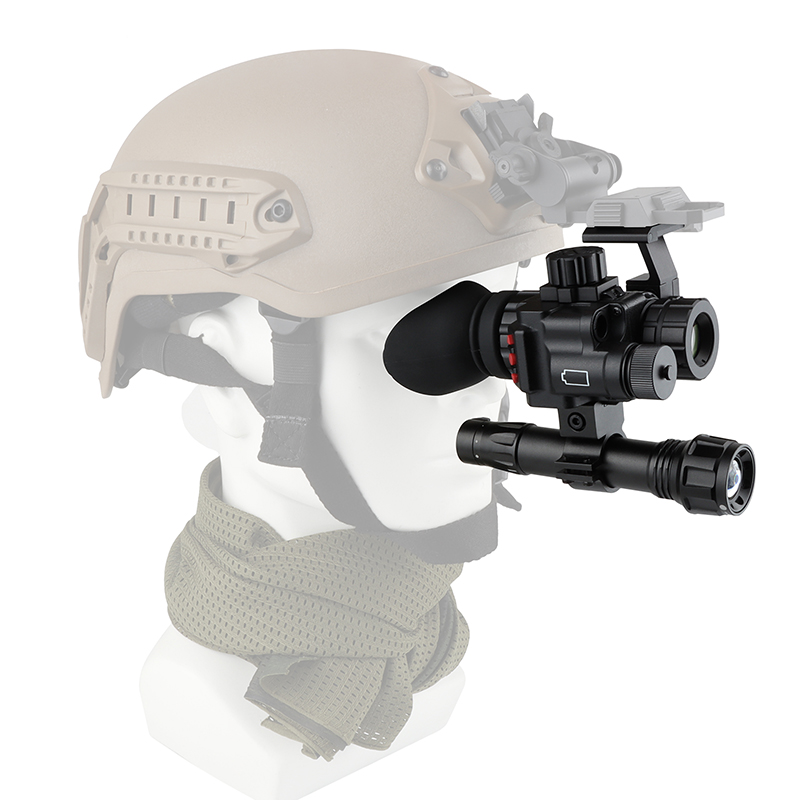

Mechanical interface   Dovetail seat, optional to fit two tactical helmet tipper mounts,can switch between left and right eyes.

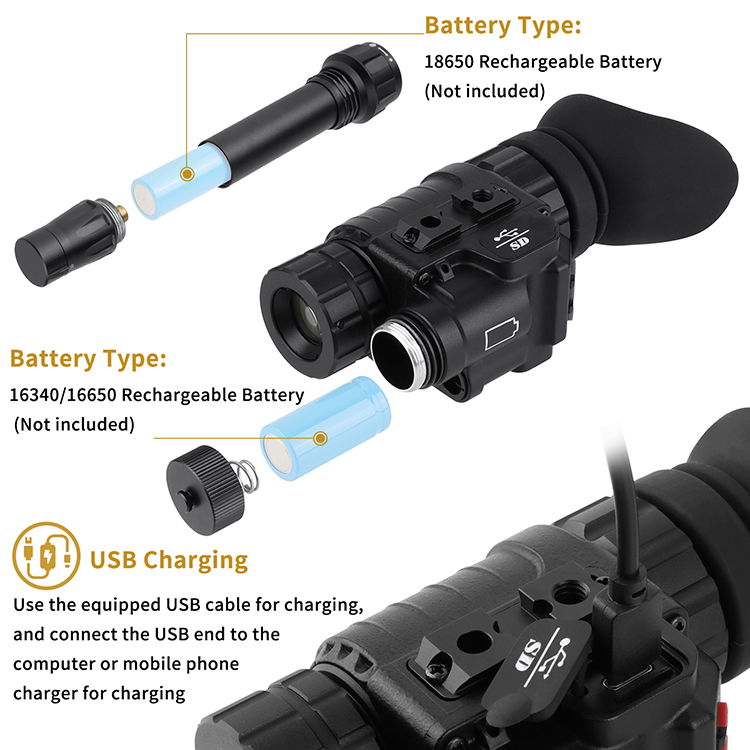

Working time   Use a 16340 rechargeable battery, continuous working time is more than 1h (infrared light on), 1.5h(infrared light off); Use a 16650 rechargeable battery, continuous working time is more than 3h(infrared light on), 4.5h(infrared light off)

The battery type   1 16340 rechargeable battery or 1 16650 rechargeable battery
